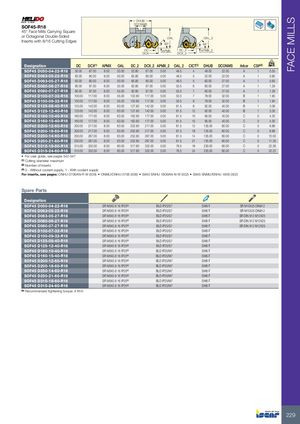

FACE MILLS DHUB SOF45-R18 DCONMS 45° Face Mills Carrying Square or Octagonal Double-Sided OAL OAL_2 Inserts with 8/16 Cutting Edges 45° 44° DC APMX DC_2 APMX_2 DCX DCX_2 Designation DC DCX(1) APMX OAL DC_2 DCX_2 APMX_2 OAL_2 CICT(2) DHUB DCONMS Arbor CSP(3) kg SOF45 D050-04-22-R18 50.00 67.00 8.00 50.00 52.80 67.00 5.00 48.5 4 48.00 22.00 A 1 0.55 SOF45 D063-05-22-R18 63.00 80.00 8.00 50.00 65.80 80.00 5.00 48.5 5 52.00 22.00 A 1 0.80 SOF45 D063-05-27-R18 63.00 80.00 8.00 50.00 65.80 80.00 5.00 48.5 5 60.00 27.00 A 1 0.83 SOF45 D080-06-27-R18 80.00 97.00 8.00 55.00 82.80 97.00 5.00 53.5 6 60.00 27.00 A 1 1.29 SOF45 D080-07-27-R18 80.00 97.00 8.00 55.00 82.80 97.00 5.00 53.5 7 60.00 27.00 A 1 1.29 SOF45 D100-07-32-R18 100.00 117.00 8.00 55.00 102.80 117.00 5.00 53.5 7 78.00 32.00 B 1 1.95 SOF45 D100-09-32-R18 100.00 117.00 8.00 55.00 102.80 117.00 5.00 53.5 9 78.00 32.00 B 1 1.94 SOF45 D125-08-40-R18 125.00 142.00 8.00 63.00 127.80 142.00 5.00 61.5 8 92.00 40.00 B 1 3.38 SOF45 D125-12-40-R18 125.00 142.00 8.00 63.00 127.80 142.00 5.00 61.5 12 92.00 40.00 B 1 3.35 SOF45 D160-10-40-R18 160.00 177.00 8.00 63.00 162.80 177.00 5.00 61.5 10 95.00 40.00 C 0 4.20 SOF45 D160-15-40-R18 160.00 177.00 8.00 63.00 162.80 177.00 5.00 61.5 15 95.00 40.00 C 0 4.30 SOF45 D200-12-60-R18 200.00 217.00 8.00 63.00 202.80 217.00 5.00 61.5 12 135.00 60.00 C 0 6.88 SOF45 D200-18-60-R18 200.00 217.00 8.00 63.00 202.80 217.00 5.00 61.5 18 135.00 60.00 C 0 6.99 SOF45 D250-14-60-R18 250.00 267.00 8.00 63.00 252.80 267.00 5.00 61.5 14 135.00 60.00 C 0 10.50 SOF45 D250-21-60-R18 250.00 267.00 8.00 63.00 252.80 267.00 5.00 61.5 21 135.00 60.00 C 0 11.35 SOF45 D315-18-60-R18 315.00 332.00 8.00 80.00 317.80 332.00 5.00 78.5 18 230.00 60.00 C 0 22.36 SOF45 D315-24-60-R18 315.00 332.00 8.00 80.00 317.80 332.00 5.00 78.5 24 230.00 60.00 C 0 22.22 • For user guide, see pages 542-547 (1) Cutting diameter maximum (2) Number of inserts (3) 0 - Without coolant supply, 1 - With coolant supply For inserts, see pages: ONHU 0706AN-R-W (509) • ONMU/ONHU 0706 (509) • S845 SNHU 1806AN-N-W (502) • S845 SNMU/SNHU 1806 (502) Spare Parts Designation SOF45 D050-04-22-R18 SR M5X0.8 16 IP20(a) BLD IP20/S7 SW6-T SR M10X25 DIN912 SOF45 D063-05-22-R18 SR M5X0.8 16 IP20(a) BLD IP20/S7 SW6-T SR M10X25 DIN912 SOF45 D063-05-27-R18 SR M5X0.8 16 IP20(a) BLD IP20/S7 SW6-T SR DIN 912 M12X25 SOF45 D080-06-27-R18 SR M5X0.8 16 IP20(a) BLD IP20/S7 SW6-T SR DIN 912 M12X25 SOF45 D080-07-27-R18 SR M5X0.8 16 IP20(a) BLD IP20/S7 SW6-T SR DIN 912 M12X25 SOF45 D100-07-32-R18 SR M5X0.8 16 IP20(a) BLD IP20/S7 SW6-T SOF45 D100-09-32-R18 SR M5X0.8 16 IP20(a) BLD IP20/S7 SW6-T SOF45 D125-08-40-R18 SR M5X0.8 16 IP20(a) BLD IP20/S7 SW6-T SOF45 D125-12-40-R18 SR M5X0.8 16 IP20(a) BLD IP20/S7 SW6-T SOF45 D160-10-40-R18 SR M5X0.8 16 IP20(a) BLD IP20/M7 SW6-T SOF45 D160-15-40-R18 SR M5X0.8 16 IP20(a) BLD IP20/M7 SW6-T SOF45 D200-12-60-R18 SR M5X0.8 16 IP20(a) BLD IP20/M7 SW6-T SOF45 D200-18-60-R18 SR M5X0.8 16 IP20(a) BLD IP20/M7 SW6-T SOF45 D250-14-60-R18 SR M5X0.8 16 IP20(a) BLD IP20/M7 SW6-T SOF45 D250-21-60-R18 SR M5X0.8 16 IP20(a) BLD IP20/M7 SW6-T SOF45 D315-18-60-R18 SR M5X0.8 16 IP20(a) BLD IP20/M7 SW6-T SOF45 D315-24-60-R18 SR M5X0.8 16 IP20(a) BLD IP20/M7 SW6-T (a) Recommended tightening torque: 9 N*m 229
