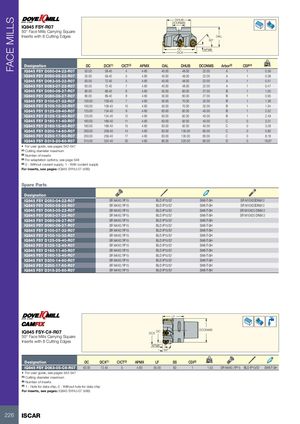

Каталог Iscar торцевые фрезы 2022 - страница 42

FACE MILLS DHUB DCONMS IQ845 FSY-R07 50° Face Mills Carrying Square Inserts with 8 Cutting Edges OAL 50° DC APMX DCX Designation DC DCX(1) CICT(2) APMX OAL DHUB DCONMS Arbor(3) CSP(4) kg IQ845 FSY D050-04-22-R07 50.00 59.40 4 4.60 40.00 48.00 22.00 A 1 0.39 IQ845 FSY D050-05-22-R07 50.00 59.40 5 4.60 40.00 48.00 22.00 A 1 0.38 IQ845 FSY D063-05-22-R07 63.00 72.40 5 4.60 40.00 48.00 22.00 A 1 0.51 IQ845 FSY D063-07-22-R07 63.00 72.40 7 4.60 40.00 48.00 22.00 A 1 0.47 IQ845 FSY D080-06-27-R07 80.00 89.40 6 4.60 50.00 60.00 27.00 B 1 1.00 IQ845 FSY D080-08-27-R07 80.00 89.40 8 4.60 50.00 60.00 27.00 B 1 0.95 IQ845 FSY D100-07-32-R07 100.00 109.40 7 4.60 50.00 70.00 32.00 B 1 1.36 IQ845 FSY D100-10-32-R07 100.00 109.40 10 4.60 50.00 70.00 32.00 B 1 1.34 IQ845 FSY D125-09-40-R07 125.00 134.40 9 4.60 63.00 82.00 40.00 B 1 2.52 IQ845 FSY D125-12-40-R07 125.00 134.40 12 4.60 63.00 82.00 40.00 B 1 2.49 IQ845 FSY D160-11-40-R07 160.00 169.40 11 4.60 63.00 92.00 40.00 C 0 3.31 IQ845 FSY D160-15-40-R07 160.00 169.40 15 4.60 63.00 92.00 40.00 C 0 3.28 IQ845 FSY D200-14-60-R07 200.00 209.40 14 4.60 63.00 135.00 60.00 C 0 5.80 IQ845 FSY D250-17-60-R07 250.00 259.40 17 4.60 63.00 135.00 60.00 C 0 8.18 IQ845 FSY D315-20-60-R07 315.00 324.40 20 4.60 80.00 220.00 60.00 D 0 16.87 • For user guide, see pages 542-547 (1) Cutting diameter maximum (2) Number of inserts (3) For adaptation options, see page 548 (4) 0 - Without coolant supply, 1 - With coolant supply For inserts, see pages: IQ845 SYHU-07 (499) Spare Parts Designation IQ845 FSY D050-04-22-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH SR M10X20DIN912 IQ845 FSY D050-05-22-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH SR M10X20DIN912 IQ845 FSY D063-05-22-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH SR M10X25 DIN912 IQ845 FSY D063-07-22-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH SR M10X25 DIN912 IQ845 FSY D080-06-27-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH IQ845 FSY D080-08-27-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH IQ845 FSY D100-07-32-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH IQ845 FSY D100-10-32-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH IQ845 FSY D125-09-40-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH IQ845 FSY D125-12-40-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH IQ845 FSY D160-11-40-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH IQ845 FSY D160-15-40-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH IQ845 FSY D200-14-60-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH IQ845 FSY D250-17-60-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH IQ845 FSY D315-20-60-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH LF IQ845 FSY-C#-R07 DCX DC DCONMS 50° Face Mills Carrying Square Inserts with 8 Cutting Edges APMX 50° Designation DC DCX(1) CICT(2) APMX LF SS CDI(3) kg IQ845 FSY D063-05-C6-R07 63.00 72.40 5 4.60 55.00 63 1 1.53 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH • For user guide, see pages 542-547 (1) Cutting diameter maximum (2) Number of inserts (3) 1 - Hole for data chip, 0 - Without hole for data chip For inserts, see pages: IQ845 SYHU-07 (499) 226 ISCAR
