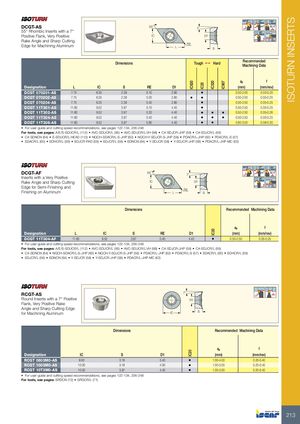

Каталог Iscar токарные пластины ISO 2022 - страница 93

IC920IC20 IC20 IC320IC20 IC907 ISOTURN INSERTS 107.5° 27° 60° MAX MAX DCGT-AS 55˚ 7˚ 93º 62.5º 55° Rhombic Inserts with a 7° 29° Positive Flank, Very Positive IC D1 MAX 93º-95º Rake Angle and Sharp Cutting 91° 50ºMAX Edge for Machining Aluminum REL S Dimensions Tough 1  Hard RecommendedMachining Data ap f Designation L IC S RE D1 (mm) (mm/rev) DCGT 070201-AS 7.75 6.35 2.38 0.10 2.80 • 0.50-2.00 0.03-0.20 DCGT 070202-AS 7.75 6.35 2.38 0.20 2.80 • • 0.50-2.00 0.05-0.20 DCGT 070204-AS 7.75 6.35 2.38 0.40 2.80 • 0.50-2.50 0.05-0.25 DCGT 11T301-AS 11.60 9.52 3.97 0.10 4.40 • 0.50-2.50 0.05-0.25 DCGT 11T302-AS 11.60 9.52 3.97 0.20 4.40 • • • 0.50-2.50 0.05-0.26 DCGT 11T304-AS 11.60 9.52 3.97 0.40 4.40 • • • 0.50-2.50 0.05-0.25 DCGT 11T308-AS 11.60 9.52 3.97 0.80 4.40 • • 0.80-3.00 0.08-0.30 • For user guide and cutting speed recommendations, see pages 122-134, 236-248 For tools, see pages: A/E/S-SDUCR/L (112) • AVC-SDUCR/L (95) • AVC-SDUCR/L-VH (98) • C#-SDJCR-JHP (59) • C#-SDJCR/L (59) • C#-SDNCN (64) • E-SDUCR/L-HEAD (113) • NQCH-SDACR/L-S-JHP (60) • NQCH-Y-SDJCR-S-JHP (58) • PDACR/L-JHP (62) • PDACR/L-S (57) • SDACR/L (60) • SDHCR/L (59) • SDJCR-PAD (59) • SDJCR/L (58) • SDNCN (64) • Y-SDJCR (58) • Y-SDJCR-JHP (58) • PDACR/L-JHP-MC (62) 107.5° 27° 60° MAX MAX DCGT-AF 55˚ 7˚ 93º 62.5º Inserts with a Very Positive 29° Rake Angle and Sharp Cutting IC D1 MAX 93º-95º Edge for Semi-Finishing and 91° 50ºMAX RE Finishing on Aluminum L S Dimensions Recommended Machining Data ap f Designation L IC S RE D1 (mm) (mm/rev) DCGT 11T304-AF 11.60 9.52 3.97 0.40 4.40 • 0.50-2.50 0.05-0.25 • For user guide and cutting speed recommendations, see pages 122-134, 236-248 For tools, see pages: A/E/S-SDUCR/L (112) • AVC-SDUCR/L (95) • AVC-SDUCR/L-VH (98) • C#-SDJCR-JHP (59) • C#-SDJCR/L (59) • C#-SDNCN (64) • NQCH-SDACR/L-S-JHP (60) • NQCH-Y-SDJCR-S-JHP (58) • PDACR/L-JHP (62) • PDACR/L-S (57) • SDACR/L (60) • SDHCR/L (59) • SDJCR/L (58) • SDNCN (64) • Y-SDJCR (58) • Y-SDJCR-JHP (58) • PDACR/L-JHP-MC (62) RCGT-AS 7˚ Round Inserts with a 7° Positive D1 Flank, Very Positive Rake Angle and Sharp Cutting Edge for Machining Aluminum IC S Dimensions Recommended Machining Data ap f Designation IC S D1 (mm) (mm/rev) RCGT 0803M0-AS 8.00 3.18 3.40 • 1.00-4.00 0.20-0.40 RCGT 1003M0-AS 10.00 3.18 4.00 • 1.00-5.00 0.20-0.40 RCGT 10T3M0-AS 10.00 3.97 4.40 • 1.00-5.00 0.20-0.40 • For user guide and cutting speed recommendations, see pages 122-134, 236-248 For tools, see pages: SRDCN (72) • SRGCR/L (71) 213
