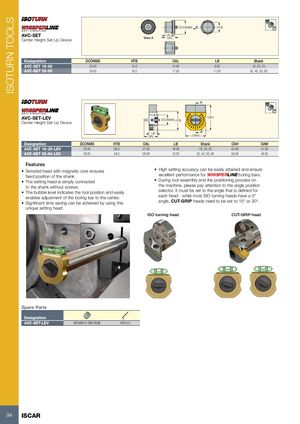

ISOTURN TOOLS DCONMS A HTB AVC-SETCenter Height Set Up Device LBView AOAL Designation DCONMS HTB OAL LB Shank AVC-SET 16-25 20.00 15.0 14.50 9.00 16, 20, 25 AVC-SET 32-60 29.00 16.0 17.50 11.50 32, 40, 50, 60 A AVC-SET-LEVCenter Height Set Up Device OAHDCONMS HTB LBOAL AOAW Designation DCONMS HTB OAL LB Shank OAH OAW AVC-SET 16-25-LEV 20.00 38.0 27.50 16.00 16, 20, 25 50.50 41.00 AVC-SET 32-60-LEV 29.00 49.0 28.00 16.00 32, 40, 50, 60 59.00 49.00 Features • Serrated head with magnetic core ensures • High setting accuracy can be easily attained and ensure fixed position of the shank. excellent performance for WHISPERLINE boring bars. • The setting head is simply connected • During tool assembly and the positioning process on to the shank without screws. the machine, please pay attention to the angle position • The bubble level indicates the tool position and easily selector. It must be set to the angle that is defined for enables adjustment of the boring bar to the center. each head - while most ISO turning heads have a 0° • Significant time saving can be achieved by using this angle, CUT-GRIP heads need to be set to 15° or 30°. unique setting head. ISO turning head CUT-GRIP head Spare Parts Designation AVC-SET-LEV SR M6X10 DIN1835B HW 3.0 94 ISCAR
