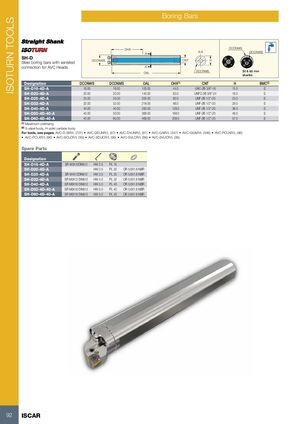

ISOTURN TOOLS Boring Bars OHX DCONMS A A-A DCONWS SH-DSteel boring bars with serrated DCONWS CNT H connection for AVC Heads A OAL DCONMS 50 & 60 mm shanks Designation DCONWS DCONMS OAL OHX(1) CNT H BMC(2) SH-D16-4D-A 16.00 16.00 105.00 44.0 UNC-2B 3/8"-16 15.0 S SH-D20-4D-A 20.00 20.00 140.00 60.0 UNFC-2B 3/8"-24 18.0 S SH-D25-4D-A 25.00 25.00 200.00 80.0 UNF-2B 1/2"-20 23.0 S SH-D32-4D-A 32.00 32.00 218.00 96.0 UNF-2B 1/2"-20 29.0 S SH-D40-4D-A 40.00 40.00 283.00 128.0 UNF-2B 1/2"-20 36.0 S SH-D50-4D-40-A 40.00 50.00 368.00 168.0 UNF-2B 1/2"-20 46.0 S SH-D60-4D-40-A 40.00 60.00 468.00 208.0 UNF-2B 1/2"-20 57.0 S (1) Maximum overhang (2) S-steel body, H-solid carbide body For tools, see pages: AVC-D-SIR/L (707) • AVC-DDUNR/L (97) • AVC-DVUNR/L (97) • AVC-GAIR/L (347) • AVC-GEAIR/L (346) • AVC-PCLNR/L (96) • AVC-PCLXR/L (96) • AVC-SCLCR/L (95) • AVC-SDUCR/L (95) • AVC-SVLCR/L (96) • AVC-SVUCR/L (95) Spare Parts Designation SH-D16-4D-A SR M3X10DIN912 HW 2.5 PL 16 SH-D20-4D-A HW 2.5 PL 20 OR 5.6X1.8 NBR SH-D25-4D-A SR M4X12DIN912 HW 3.0 PL 25 OR 5.6X1.8 NBR SH-D32-4D-A SR M5X12 DIN912 HW 4.0 PL 32 OR 5.6X1.8 NBR SH-D40-4D-A SR M6X16 DIN912 HW 5.0 PL 40 OR 5.6X1.8 NBR SH-D50-4D-40-A SR M6X16 DIN912 HW 5.0 PL 40 OR 5.6X1.8 NBR SH-D60-4D-40-A SR M6X16 DIN912 HW 5.0 PL 40 OR 5.6X1.8 NBR 92 ISCAR
