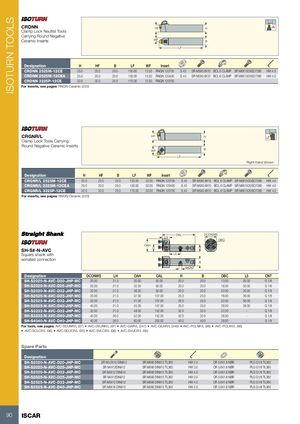

Каталог Iscar токарные державки ISO 2022 - страница 92

ISOTURN TOOLS CRDNN HF H Clamp Lock Neutral Tools Carrying Round Negative Ceramic Inserts WF B LF Designation H HF B LF WF Insert CRDNN 2525M-12CE 25.0 25.0 25.0 150.00 12.50 RNGN 120700 S 43 SR M5X0.8X10 BCL 6 CLAMP SR M6X1X25ISO7380 HW 4.0 CRDNN 2525M-12CEA 25.0 25.0 25.0 150.00 12.50 RNGN 120400 S 43 SR M5X0.8X10 BCL 6 CLAMP SR M6X1X25ISO7380 HW 4.0 CRDNN 3225P-12CE 32.0 32.0 25.0 170.00 12.50 RNGN 120700 For inserts, see pages: RNGN-Ceramic (220) CRGNR/L HF H Clamp Lock Tools Carrying Round Negative Ceramic Inserts WF B LF Right-hand shown Designation H HF B LF WF Insert CRGNR/L 2525M-12CE 25.0 25.0 25.0 150.00 32.00 RNGN 120700 S 43 SR M5X0.8X10 BCL 6 CLAMP SR M6X1X25ISO7380 HW 4.0 CRGNR/L 2525M-12CEA 25.0 25.0 25.0 150.00 32.00 RNGN 120400 S 43 SR M5X0.8X10 BCL 6 CLAMP SR M6X1X25ISO7380 HW 4.0 CRGNR/L 3225P-12CE 32.0 32.0 25.0 170.00 32.00 RNGN 120700 S 43 SR M5X0.8X10 BCL 6 CLAMP SR M6X1X25ISO7380 HW 4.0 For inserts, see pages: RNGN-Ceramic (220) OAL DCONWS LH DBC OAH SH-S#-N-AVC H H Square shank with L5 serrated connection B 4xCNT Designation DCONWS LH OAH OAL H B DBC L5 CNT SH-S2020-N-AVC-D20-JHP-MC 20.00 21.0 30.00 92.00 20.0 20.0 13.00 30.00 G 1/8 SH-S2020-N-AVC-D25-JHP-MC 25.00 21.0 32.50 92.00 20.0 20.0 16.00 30.00 G 1/8 SH-S2020-N-AVC-D32-JHP-MC 32.00 21.0 36.00 92.00 20.0 20.0 22.00 30.00 G 1/8 SH-S2525-N-AVC-D25-JHP-MC 25.00 21.0 37.50 107.00 25.0 25.0 16.00 36.00 G 1/8 SH-S2525-N-AVC-D32-JHP-MC 32.00 21.0 41.00 107.00 25.0 25.0 22.00 36.00 G 1/8 SH-S2525-N-AVC-D40-JHP-MC 40.00 21.0 45.00 107.00 25.0 25.0 28.00 36.00 G 1/8 SH-S3232-N-AVC-D32-JHP-MC 32.00 21.0 48.00 152.00 32.0 32.0 22.00 - G 1/8 SH-S3232-N-AVC-D40-JHP-MC 40.00 26.0 52.00 152.00 32.0 32.0 28.00 - G 1/8 SH-S4040-N-AVC-D40-JHP-MC 40.00 26.0 60.00 200.00 40.0 40.0 28.00 - G 1/8 For tools, see pages: AVC-DDUNR/L (97) • AVC-DVUNR/L (97) • AVC-GAIR/L (347) • AVC-GEAIR/L (346) • AVC-PCLNR/L (96) • AVC-PCLXR/L (96) • AVC-SCLCR/L (95) • AVC-SDUCR/L (95) • AVC-SVLCR/L (96) • AVC-SVUCR/L (95) Spare Parts Designation SH-S2020-N-AVC-D20-JHP-MC SR M3.5X10 DIN912 SR M6X6 DIN913 TL360 HW 2.5 OR 5.6X1.8 NBR PLG G1/8 TL360 SH-S2020-N-AVC-D25-JHP-MC SR M4X12DIN912 SR M6X6 DIN913 TL360 HW 3.0 OR 5.6X1.8 NBR PLG G1/8 TL360 SH-S2020-N-AVC-D32-JHP-MC SR M5X12 DIN912 SR M6X6 DIN913 TL360 HW 4.0 OR 5.6X1.8 NBR PLG G1/8 TL360 SH-S2525-N-AVC-D25-JHP-MC SR M4X12DIN912 SR M6X6 DIN913 TL360 HW 3.0 OR 5.6X1.8 NBR PLG G1/8 TL360 SH-S2525-N-AVC-D32-JHP-MC SR M5X12 DIN912 SR M6X6 DIN913 TL360 HW 4.0 OR 5.6X1.8 NBR PLG G1/8 TL360 SH-S2525-N-AVC-D40-JHP-MC SR M6X16 DIN912 SR M6X6 DIN913 TL360 HW 5.0 OR 5.6X1.8 NBR PLG G1/8 TL360 90 ISCAR
