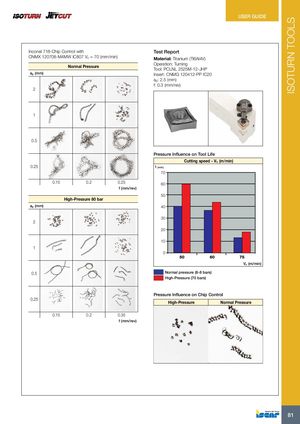

ISOTURN TOOLS USER GUIDE Inconel 718-Chip Control with Test Report CNMX 120708-M4MW IC807 Vc = 70 (mm/min) Material: Titanium (Ti6Al4V) Normal Pressure Operation: TurningTool: PCLNL 2525M-12-JHP ap (mm) Insert: CNMG 120412-PP IC20 ap: 2.5 (mm) f: 0.3 (mm/rev) 2 1 0.5 Pressure Influence on Tool Life Cutting speed - Vc (m/min) 0.25 t (min) 70 0.15 0.2 0.25 60 f (mm/rev) 50 High-Pressure 80 bar ap (mm) 40 30 2 20 10 1 0 50 60 75 Vc (m/min) 0.5 Normal pressure (6-8 bars) High-Pressure (70 bars) Pressure Influence on Chip Control 0.25 High-Pressure Normal Pressure 0.15 0.2 0.35 f (mm/rev) 81
