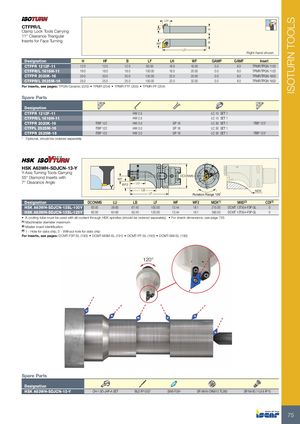

ISOTURN TOOLS LH 91º CTFPR/LClamp Lock Tools Carrying HF H 11° Clearance Triangular Inserts for Face Turning WF B LF Right-hand shown Designation H HF B LF LH WF GAMP GAMF Insert CTFPR 1212F-11 12.0 12.0 12.0 80.00 16.0 16.00 0.0 6.0 TPMR/TPGN 1103 CTFPR/L 1616H-11 16.0 16.0 16.0 100.00 16.0 20.00 0.0 6.0 TPMR/TPGN 1103 CTFPR 2020K-16 20.0 20.0 20.0 125.00 22.0 25.00 0.0 6.0 TPMR/TPGN 1603 CTFPR/L 2525M-16 25.0 25.0 25.0 150.00 22.0 32.00 0.0 6.0 TPMR/TPGN 1603 For inserts, see pages: TPGN-Ceramic (220) • TPMR (204) • TPMR-FTF (205) • TPMR-PF (204) Spare Parts Designation CTFPR 1212F-11 HW 2.5 LC 15 SET 1 CTFPR/L 1616H-11 HW 2.5 LC 15 SET 1 CTFPR 2020K-16 ITBP 122 HW 3.0 SP 16 LC 30 SET 1 ITBP 123* CTFPL 2525M-16 ITBP 122 HW 3.0 SP 16 LC 30 SET 1 CTFPR 2525M-16 ITBP 122 HW 3.0 SP 16 LC 30 SET 1 ITBP 123* * Optional, should be ordered separately HSK A63WH-SDJCN-13-Y Y-Axis Turning Tools Carrying 55° Diamond Inserts with WF DCONMS 7° Clearance Angle WF2 LU LB MDX LF Rotation Range 120 Designation DCONMS LU LB LF WF WF2 MDX(1) MIID(2) CDI(3) HSK A63WH-SDJCN-13SL-100Y 63.00 39.60 67.40 100.00 13.44 18.1 215.00 DCMT 13T504-F3P-SL 0 HSK A63WH-SDJCN-13SL-125Y 63.00 64.60 92.40 125.00 13.44 18.1 390.00 DCMT 13T504-F3P-SL 0 • A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). • For shank dimensions, see page 735 (1) Machinable diameter maximum (2) Master insert identification (3) 1 - Hole for data chip, 0 - Without hole for data chip For inserts, see pages: DCMT-F3P-SL (190) • DCMT-M3M-SL (191) • DCMT-PF-SL (193) • DCMT-SM-SL (193) 120° Spare Parts Designation HSK A63WH-SDJCN-13-Y CH-1.9D-JHP-A SET BLD IP15/S7 SW6-T-SH SR M4X4 DIN913 TL360 SR M4X0.7-L9.6 IP15 75
