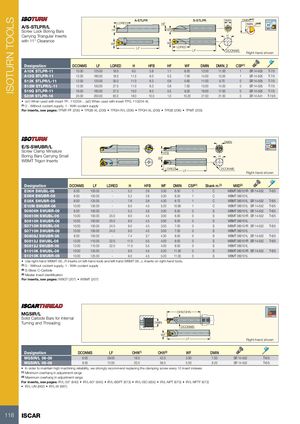

Каталог Iscar токарные державки ISO 2022 - страница 120

ISOTURN TOOLS A-STLPR S-STLPR DMIN DMIN(a1) LDRED HFA/S-STLPR/L DMIN_2(a2) 95º Screw Lock Boring Bars HF HFB Carrying Triangular Inserts H with 11° Clearance WF WF LF LDRED LF DCONMS Right-hand shown Designation DCONMS LF LDRED H HFB HF WF DMIN DMIN_2 CSP(1) A10K STLPR-11 10.00 125.00 18.0 9.5 5.8 1.1 6.00 12.00 11.00 1 SR 14-505 T-7/5 A12Q STLPR-11 12.00 180.00 18.0 11.5 6.0 0.3 7.00 14.00 13.00 1 SR 14-505 T-7/5 S12K STLPR/L-11 12.00 125.00 35.0 11.0 6.3 0.8 5.60 11.00 9.70 0 SR 14-505 T-7/5 S12M STLPR/L-11 12.00 150.00 27.0 11.0 6.3 0.8 7.00 15.00 14.00 0 SR 14-505 T-7/5 S16Q STLPR-11 16.00 180.00 27.0 15.0 8.0 0.5 9.00 18.00 17.00 0 SR 14-505 T-7/5 S20R STLPR-16 20.00 200.00 63.0 18.0 10.0 1.0 10.20 21.50 21.50 0 SR 14-541 T-15/5 • (a1) When used with insert TP.. 110204-.. (a2) When used with insert TPG. 110204-XL (1) 0 - Without coolant supply, 1 - With coolant supply For inserts, see pages: TPMT-PF (205) • TPGB-XL (206) • TPGH-R/L (206) • TPGH-XL (206) • TPGB (206) • TPMT (205) DMIN 93º E/S-SWUBR/L Screw Clamp Miniature HFB Boring Bars Carrying Small WF H WBMT Trigon Inserts LDRED LF DCONMS Right-hand shown Designation DCONMS LF LDRED H HFB WF DMIN CSP(1) Shank m.(2) MIID(3) E06H SWUBL-06 6.00 100.00 - 5.2 2.6 3.30 6.50 1 C WBMT 060101R SR 14-552 T-6/5 E06H SWUBR-06 6.00 100.00 - 5.2 2.6 3.30 6.50 1 C WBMT 060101L E08K SWUBR-06 8.00 125.00 - 7.6 3.8 4.30 8.70 1 C WBMT 060101L SR 14-552 T-6/5 E10M SWUBR-06 10.00 150.00 - 9.0 4.5 5.20 10.90 1 C WBMT 060101L SR 14-552 T-6/5 S0606H SWUBR-06 6.00 100.00 - 5.2 2.6 3.30 6.50 0 S WBMT 060101L SR 14-552 T-6/5 S0610H SWUBL-06 10.00 100.00 20.0 9.0 4.5 3.00 6.00 0 S WBMT 060101R SR 14-552 T-6/5 S0610H SWUBR-06 10.00 100.00 20.0 9.0 4.5 3.00 6.00 0 S WBMT 060101L S0710H SWUBL-06 10.00 100.00 24.0 9.0 4.5 3.50 7.00 0 S WBMT 060101R SR 14-552 T-6/5 S0710H SWUBR-06 10.00 100.00 24.0 9.0 4.5 3.50 7.00 0 S WBMT 060101L S0808J SWUBR-06 8.00 100.00 - 7.4 3.7 4.30 8.50 0 S WBMT 060101L SR 14-552 T-6/5 S0812J SWUBL-06 12.00 110.00 32.0 11.0 5.5 4.00 8.00 0 S WBMT 060101R SR 14-552 T-6/5 S0812J SWUBR-06 12.00 110.00 32.0 11.0 5.5 4.00 8.00 0 S WBMT 060101L S1010K SWUBL-06 10.00 125.00 - 9.0 4.5 5.20 11.00 0 S WBMT 060101R SR 14-552 T-6/5 S1010K SWUBR-06 10.00 125.00 - 9.0 4.5 5.20 11.00 0 S WBMT 060101L • Use right-hand WBMT 06...R inserts on left-hand tools and left-hand WBMT 06...L inserts on right-hand tools. (1) 0 - Without coolant supply, 1 - With coolant supply (2) S-Steel, C-Carbide (3) Master insert identification For inserts, see pages: WBGT (207) • WBMT (207) MGSIR/L OHX/OHN Solid Carbide Bars for Internal Turning and Threading DMIN DCONMS WF LF Right-hand shown Designation DCONMS LF OHN(1) OHX(2) WF DMIN MGSIR/L 06-06 6.00 59.00 16.0 42.0 3.90 7.00 SR 14-552 T-6/5 MGSIR/L 08-06 8.00 72.00 20.0 56.0 5.00 9.20 SR 14-552 T-6/5 • In order to maintain high machining reliability, we strongly recommend replacing the clamping screw every 10 insert indexes (1) Minimum overhang in adjustment range (2) Maximum overhang in adjustment range For inserts, see pages: IR/L-55° (640) • IR/L-60° (645) • IR/L-BSPT (673) • IR/L-ISO (655) • IR/L-NPT (670) • IR/L-NPTF (672) • IR/L-UN (662) • IR/L-W (667) 118 ISCAR
