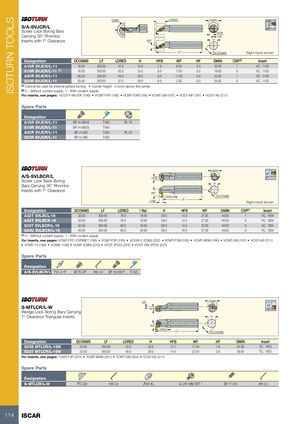

ISOTURN TOOLS DMIN LDRED DMIN 142º S/A-SVJCR/L 93º Screw Lock Boring Bars 52° HFB Carrying 35° Rhombic HF Inserts with 7° Clearance WF H LF DCONMS Right-hand shown Designation DCONMS LF LDRED H HFB WF HF DMIN CSP(2) Insert A16R SVJCR/L-11 16.00 200.00 47.5 15.0 7.5 8.50 0.0 20.00 1 VC.. 1103 S16R SVJCR/L-11 (1) 16.00 200.00 20.0 15.0 8.0 7.00 0.5 19.00 0 VC.. 1103 A20R SVJCR/L-11 20.00 200.00 43.0 18.0 9.0 11.00 0.0 25.00 1 VC.. 1103 S20R SVJCR/L-11 20.00 200.00 37.0 19.0 9.5 2.00 0.0 25.00 0 VC.. 1103 (1) Cannot be used for internal sphere turning • Center height - 0.5mm above the center (2) 0 - Without coolant supply, 1 - With coolant supply For inserts, see pages: VCGT-F1M-20P (196) • VCMT-F3P (195) • VCMT-F3M (195) • VCMT-SM (197) • VCET-WF (197) • VCGT-AS (211) Spare Parts Designation A16R SVJCR/L-11 SR 14-560/S T-8/5 PL 16 S16R SVJCR/L-11 SR 14-560/S T-8/5 A20R SVJCR/L-11 SR 14-560 T-8/5 PL 20 S20R SVJCR/L-11 SR 14-560 T-8/5 DMIN 95º A/S-SVLBCR/L HFB Screw Lock Back Boring Bars Carrying 35° Rhombic H Inserts with 7° Clearance WF LDRED DCONMS l Ref. LF Right-hand shown Designation DCONMS LF LDRED l Ref. H HFB WF DMIN CSP(1) Insert A32T SVLBCL-16 32.00 300.00 76.5 18.50 29.0 14.5 27.50 40.00 1 VC.. 1604 A32T SVLBCR-16 32.00 300.00 76.5 18.50 29.0 14.5 27.50 40.00 0 VC.. 1604 S32T SVLBCR/L-16 32.00 300.00 63.2 18.50 29.0 14.5 22.00 40.00 0 VC.. 1604 S40U SVLBCR/L-16 40.00 350.00 60.0 20.00 36.0 18.0 27.00 49.50 0 VC.. 1604 (1) 0 - Without coolant supply, 1 - With coolant supply For inserts, see pages: VCMT-FPC-CERMET (196) • VCMT-F3P (195) • VCGW-2 (CBN) (232) • VCMT-F3M (195) • VCMT-M3M (196) • VCMT-SM (197) • VCGT-AS (211) • VCMT-14 (198) • VCMW (198) • VCMT (CBN) (222) • VCGT (PCD) (223) • VCGT-DW (PCD) (223) Spare Parts Designation A/S-SVLBCR/L TVC 3-1P SR TC-3P HW 4.0 SR 16-236 P T-15/5 HF DMIN S-MTLCR/L-W HFB 95º Wedge Lock Boring Bars Carrying 7° Clearance Triangular Inserts H WF LDRED LF DCONMS Designation DCONMS LF LDRED H HFB WF HF DMIN Insert S25S MTLCR/L-16W 25.00 250.00 43.0 23.0 13.1 17.00 1.6 34.00 TC.. 16T3 S32T MTLCR/L-16W 32.00 300.00 45.0 29.0 14.5 22.00 0.0 39.00 TC.. 16T3 For inserts, see pages: TCMT-F3P (201) • TCMT-M3M (201) • TCMT-SM (202) • TCGT-AS (211) Spare Parts Designation S-MTLCR/L-W TTC 331 HW 2.0 ZNW 3C LC 291-MIM SET 1 SR 17-319 HW 2.5 114 ISCAR
