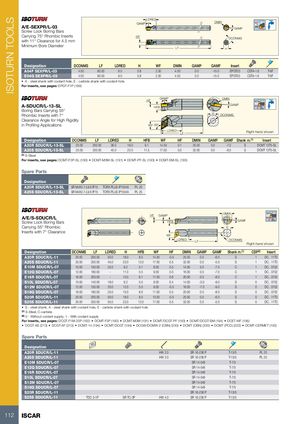

Каталог Iscar токарные державки ISO 2022 - страница 114

ISOTURN TOOLS LDRED GAMP DMIN A/E-SEXPR/L-03 100ºGAMF Screw Lock Boring Bars Carrying 75° Rhombic Inserts WF DCONMS with 11° Clearance for 4.5 mm Minimum Bore Diameter LF H Designation DCONMS LF LDRED H WF DMIN GAMP GAMF Insert A04F SEXPR/L-03 4.00 80.00 8.0 3.8 2.30 4.50 0.0 -15.0 EPGT03 CSTA-1.6 T-6F E04G SEXPR/L-03 4.00 90.00 9.0 3.8 2.30 4.50 0.0 -15.0 EPGT03 CSTA-1.6 T-6F • A - steel shank with coolant hole, E - carbide shank with coolant hole For inserts, see pages: EPGT-F1P (189) HF GAMP DMIN 93º-95º A-SDUCR/L-13-SL GAMFHFB 50ºMAX Boring Bars Carrying 55° Rhombic Inserts with 7° H DCONMS Clearance Angle for High Rigidity in Profiling Applications WF 93° LDRED LF Right-hand shown Designation DCONMS LF LDRED H HFB WF HF DMIN GAMP GAMF Shank m.(1) Insert A20R SDUCR/L-13-SL 20.00 200.00 36.0 18.0 9.1 14.50 0.1 25.00 0.0 -7.0 S DCMT 13T5-SL A25S SDUCR/L-13-SL 25.00 250.00 45.0 23.0 11.5 17.00 0.0 32.00 0.0 -6.0 S DCMT 13T5-SL (1) S-Steel For inserts, see pages: DCMT-F3P-SL (190) • DCMT-M3M-SL (191) • DCMT-PF-SL (193) • DCMT-SM-SL (193) Spare Parts Designation A20R SDUCR/L-13-SL SR M4X0.7-L9.6 IP15 TORX PLUS IP15X45 PL 20 A25S SDUCR/L-13-SL SR M4X0.7-L9.6 IP15 TORX PLUS IP15X45 PL 25 A/E/S-SDUCR/LScrew Lock Boring Bars HF GAMP DMIN 93º-95ºHFBGAMF50ºMAX Carrying 55° Rhombic H Inserts with 7° Clearance WF LDRED LF DCONMS Right-hand shown Designation DCONMS LF LDRED H HFB WF HF DMIN GAMP GAMF Shank m.(1) CSP(2) Insert A20R SDUCR/L-11 20.00 200.00 50.0 18.0 8.5 14.50 -0.5 25.00 0.0 -6.0 S 1 DC.. 11T3 A25S SDUCR/L-11 25.00 250.00 45.0 23.0 12.0 17.00 0.5 32.00 0.0 -5.0 S 1 DC.. 11T3 E10M SDUCR/L-07 10.00 150.00 25.0 9.2 5.1 8.00 0.5 14.00 3.0 -7.0 C 1 DC.. 0702 E12Q SDUCR/L-07 12.00 180.00 - 11.0 5.5 9.00 0.0 16.00 0.0 -7.0 C 1 DC.. 0702 E16R SDUCR/L-07 16.00 200.00 - 15.0 8.1 11.00 0.6 20.00 0.0 -8.0 C 1 DC.. 0702 S10L SDUCR/L-07 10.00 140.00 18.0 9.2 5.0 8.00 0.4 14.00 -3.0 -9.0 S 0 DC.. 0702 S12M SDUCR/L-07 12.00 150.00 20.0 12.0 5.5 9.00 -0.5 16.00 -7.0 -9.0 S 0 DC.. 0702 S16Q SDUCR/L-07 16.00 180.00 25.0 15.0 8.0 11.00 0.5 20.00 0.0 -8.0 S 0 DC.. 0702 S20R SDUCR/L-11 20.00 200.00 50.0 18.0 8.5 13.00 -0.5 25.00 0.0 -6.0 S 0 DC.. 11T3 S25S SDUCR/L-11 25.00 250.00 55.0 23.0 12.0 17.00 0.5 32.00 0.0 -5.0 S 0 DC.. 11T3 • S - steel shank, A - steel shank with coolant hole, E - carbide shank with coolant hole (1) S-Steel, C-carbide (2) 0 - Without coolant supply, 1 - With coolant supply For inserts, see pages: DCGT-F1M-20P (192) • DCMT-F3P (190) • DCMT-M3M (191) • DCMT/DCGT-PF (193) • DCMT/DCGT-SM (194) • DCET-WF (195) • DCGT-AS (213) • DCGT-AF (213) • DCMT-14 (194) • DCMT/DCGT (194) • DCGW/DCMW-2 (CBN) (230) • DCMT (CBN) (230) • DCMT (PCD) (222) • DCMT-CERMET (192) Spare Parts Designation A20R SDUCR/L-11 HW 2.0 SR 16-236 P T-15/5 PL 20 A25S SDUCR/L-11 HW 2.0 SR 16-236 P T-15/5 PL 25 E10M SDUCR/L-07 SR 14-548 T-7/5 E12Q SDUCR/L-07 SR 14-548 T-7/5 E16R SDUCR/L-07 SR 14-548 T-7/5 S10L SDUCR/L-07 SR 14-548 T-7/5 S12M SDUCR/L-07 SR 14-548 T-7/5 S16Q SDUCR/L-07 SR 14-548 T-7/5 S20R SDUCR/L-11 SR 16-236 P T-15/5 S25S SDUCR/L-11 TDC 3-1P SR TC-3P HW 4.0 SR 16-236 P T-15/5 112 ISCAR
