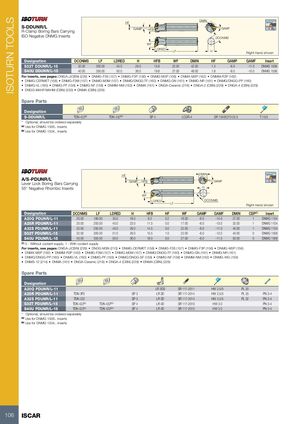

ISOTURN TOOLS HF DMIN 93º-95º S-DDUNR/LR-Clamp Boring Bars Carrying GAMP HFB GAMF 50ºMAX ISO Negative DNMG Inserts DCONMS WF LDRED LF H Right-hand shown Designation DCONMS LF LDRED H HFB WF DMIN HF GAMP GAMF Insert S32T DDUNR/L-15 32.00 300.00 45.0 29.0 15.8 22.00 42.00 1.3 -6.0 -11.0 DNMG 1506 S40U DDUNR/L-15 40.00 350.00 50.0 36.0 19.8 27.00 48.00 1.8 -6.0 -10.0 DNMG 1506 For inserts, see pages: DNGA-J(CBN) (229) • DNMG-F3S (157) • DNMG-F3P (156) • DNMG-M3P (156) • DNMX-M3P (162) • DNMM-R3P (162) • DNMG-CERMET (158) • DNMG-F3M (157) • DNMG-M3M (157) • DNMG/DNGG-TF (160) • DNMG-GN (161) • DNMG-NR (161) • DNMG/DNGG-PP (160) • DNMG-VL (160) • DNMG-PF (159) • DNMG-NF (158) • DNMM-NM (162) • DNMA (161) • DNGA-Ceramic (218) • DNGA-2 (CBN) (229) • DNGA-4 (CBN) (229) • DNGG-M4HF/M4HM (CBN) (230) • DNMA (CBN) (228) Spare Parts Designation S-DDUNR/L TDN 422(a) TDN 432(b)* SP 4 LCGR-4 SR 10400270-25.5 T-15/5 * Optional, should be ordered separately (a) Use for DNMG 1506.. inserts (b) Use for DNMG 1504.. inserts HF DMIN 93º-95º A/S-PDUNR/LLever Lock Boring Bars Carrying GAMP HFB GAMF 50ºMAX 55° Negative Rhombic Inserts H WF LDRED DCONMS LF Right-hand shown Designation DCONMS LF LDRED H HFB HF WF GAMP GAMF DMIN CSP(1) Insert A20Q PDUNR/L-11 20.00 180.00 35.0 18.0 9.2 0.2 16.00 -6.0 -14.0 27.00 1 DNMG 1104 A25R PDUNR/L-11 25.00 200.00 40.0 23.0 11.5 0.0 17.00 -6.0 -13.0 32.00 1 DNMG 1104 A32S PDUNR/L-11 32.00 250.00 45.0 29.0 14.5 0.0 22.00 -6.0 -11.0 40.00 1 DNMG 1104 S32T PDUNR/L-15 32.00 300.00 51.0 29.0 15.5 1.0 22.00 -6.0 -13.0 40.00 0 DNMG 1506 S40U PDUNR/L-15 40.00 350.00 50.0 36.0 18.0 0.0 27.00 -6.0 -11.5 50.00 0 DNMG 1506 (1) 0 - Without coolant supply, 1 - With coolant supply For inserts, see pages: DNGA-J(CBN) (229) • DNGG-M3N (210) • DNMG-CERMET (158) • DNMG-F3S (157) • DNMG-F3P (156) • DNMG-M3P (156) • DNMX-M3P (162) • DNMM-R3P (162) • DNMG-F3M (157) • DNMG-M3M (157) • DNMG/DNGG-TF (160) • DNMG-GN (161) • DNMG-NR (161) • DNMG/DNGG-PP (160) • DNMG-VL (160) • DNMG-PF (159) • DNMG/DNGG-SF (159) • DNMG-NF (158) • DNMM-NM (162) • DNMG-WG (159) • DNMS-12 (214) • DNMA (161) • DNGA-Ceramic (218) • DNGA-4 (CBN) (229) • DNMA (CBN) (228) Spare Parts Designation A20Q PDUNR/L-11 LR 3DS SR 117-2011 HW 2.5/5 PL 20 A25R PDUNR/L-11 TDN 3P2 SP 3 LR 3D SR 117-2014 HW 2.5/5 PL 25 PN 3-4 A32S PDUNR/L-11 TDN 322 SP 3 LR 3D SR 117-2014 HW 2.5/5 PL 32 PN 3-4 S32T PDUNR/L-15 TDN 422(a) TDN 432(b)* SP 4 LR 4D SR 117-2010 HW 3.0 PN 3-4 S40U PDUNR/L-15 TDN 422(a) TDN 432(b)* SP 4 LR 4D SR 117-2010 HW 3.0 PN 3-4 * Optional, should be ordered separately (a) Use for DNMG 1506.. inserts (b) Use for DNMG 1504.. inserts 106 ISCAR
