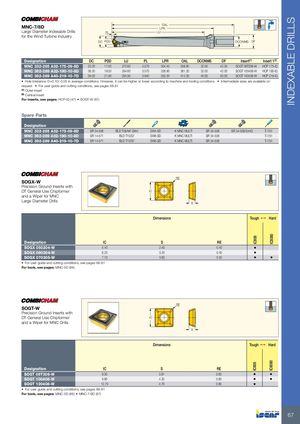

Каталог Iscar сверла со сменной режущей частью 2022 - страница 69

IC808IC808 IC8080IC8080 INDEXABLE DRILLS MNC-7/8D OALLPR Large Diameter Indexable Drills PL LU for the Wind Turbine Industry DC PDD DCONMS DF Designation DC PDD LU PL LPR OAL DCONMS DF Insert(1) Insert 1(2) MNC 332-265 A32-175-09-8D 33.20 17.50 270.60 5.570 304.40 358.80 32.00 42.00 SOGT 09T306-W HCP 175-IQ MNC 362-289 A32-190-10-8D 36.20 19.00 294.60 5.570 326.90 381.30 32.00 42.00 SOGT 100408-W HCP 190-IQ MNC 392-289 A40-219-10-7D 39.20 21.90 294.90 5.940 352.20 414.30 40.00 50.00 SOGT 100408-W HCP 219-IQ • Hole tolerance: D+0.10/-0.05 in average conditions. However, it can be higher or lower according to machine and tooling conditions • Intermediate sizes are available on request • For user guide and cutting conditions, see pages 68-81 (1) Outer insert (2) Central insert For inserts, see pages: HCP-IQ (47) • SOGT-W (67) Spare Parts Designation MNC 332-265 A32-175-09-8D SR 34-506 BLD T09/M7-SW4 SW4-SD K MNC MULTI SR 34-508 SR 34-508/S-HG T-7/51 MNC 362-289 A32-190-10-8D SR 14-571 BLD T10/S7 SW6-SD K MNC MULTI SR 34-508 T-7/51 MNC 392-289 A40-219-10-7D SR 14-571 BLD T10/S7 SW6-SD K MNC MULTI SR 34-508 T-7/51 RE SOGX-W Precision Ground Inserts with DT General Use Chipformer IC and a Wiper for MNC Large Diameter Drills S Dimensions Tough 1  Hard Designation IC S RE SOGX 050204-W 5.40 2.40 0.40 • SOGX 060304-W 6.20 3.20 0.40 • SOGX 070305-W 7.70 3.60 0.50 • • • For user guide and cutting conditions, see pages 68-81 For tools, see pages: MNC-5D (66) RE SOGT-W Precision Ground Inserts with DT General Use Chipformer IC and a Wiper for MNC Drills S Dimensions Tough 1  Hard Designation IC S RE SOGT 09T306-W 9.00 3.81 0.60 • • SOGT 100408-W 9.80 4.30 0.80 • • SOGT 120408-W 12.70 4.76 0.80 • • For user guide and cutting conditions, see pages 68-81 For tools, see pages: MNC-5D (66) • MNC-7/8D (67) 67
