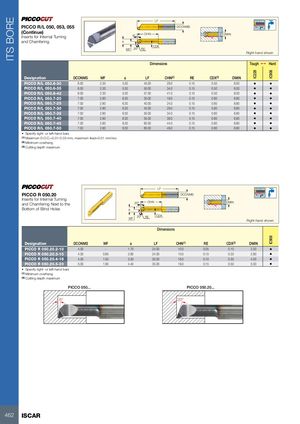

ITS BORE IC228 IC908IC908 LF PICCO R/L 050, 053, 055 DCONMS (Continue)Inserts for Internal Turning 8° OHN DMIN and Chamfering a CDX WF 20° RE Right-hand shown Dimensions Tough 1  Hard Designation DCONMS WF a LF OHN(2) RE CDX(3) DMIN PICCO R/L 050.6-30 6.00 2.30 5.30 45.00 29.0 0.15 0.50 6.00 • • PICCO R/L 050.6-35 6.00 2.30 5.30 50.00 34.0 0.15 0.50 6.00 • • PICCO R/L 050.6-42 6.00 2.30 5.30 57.00 41.0 0.15 0.50 6.00 • • PICCO R/L 050.7-20 7.00 2.80 6.30 35.00 19.0 0.15 0.60 6.80 • • PICCO R/L 050.7-25 7.00 2.80 6.30 40.00 24.0 0.15 0.60 6.80 • • PICCO R/L 050.7-30 7.00 2.80 6.30 45.00 29.0 0.15 0.60 6.80 • • PICCO R/L 050.7-35 7.00 2.80 6.30 50.00 34.0 0.15 0.60 6.80 • • PICCO R/L 050.7-40 7.00 2.80 6.30 55.00 39.0 0.15 0.60 6.80 • • PICCO R/L 050.7-45 7.00 2.80 6.30 60.00 44.0 0.15 0.60 6.80 • • PICCO R/L 050.7-50 7.00 2.80 6.30 65.00 49.0 0.15 0.60 6.80 • • • Specify right- or left-hand bars (1) Maximum D.O.C.=0.01-0.03 mm, maximum feed=0.01 mm/rev. (2) Minimum overhang (3) Cutting depth maximum LF PICCO R 050.20 DCONMS Inserts for Internal Turning and Chamfering Next to the 20° OHN DMIN Bottom of Blind Holes a WF 20° RE CDX Right-hand shown Dimensions Designation DCONMS WF a LF OHN(1) RE CDX(2) DMIN PICCO R 050.20.2-10 4.00 - 1.70 24.00 10.0 0.05 0.10 2.00 • PICCO R 050.20.3-10 4.00 0.60 2.60 24.00 10.0 0.10 0.20 2.80 • PICCO R 050.20.4-16 4.00 1.50 3.50 30.00 16.0 0.10 0.30 4.00 • PICCO R 050.20.5-20 5.00 1.90 4.40 35.00 19.0 0.15 0.50 5.00 • • Specify right- or left-hand bars (1) Minimum overhang (2) Cutting depth maximum PICCO 050... PICCO 050.20... 8° 20° 462 ISCAR
