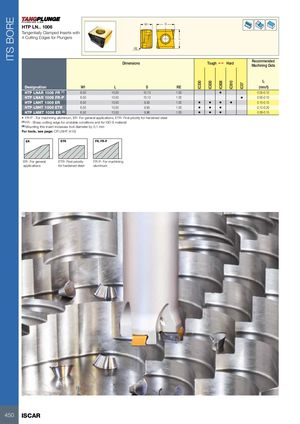

ITS BORE IC330 IC830 IC808 IC810 IC07 HTP LN.. 1006 W1 S Tangentially Clamped Inserts with 4 Cutting Edges for Plungers L RE Dimensions Tough 1  Hard RecommendedMachining Data fz Designation W1 L S RE (mm/t) HTP LNAR 1006 FR (1) 6.50 10.50 10.13 1.00 • 0.05-0.15 HTP LNAR 1006 FR-P 6.50 10.50 10.13 1.00 • 0.05-0.15 HTP LNHT 1006 ER 6.50 10.50 9.93 1.00 • • • • 0.10-0.15 HTP LNHT 1006 ETR 6.50 10.50 9.93 1.00 • • • 0.12-0.20 HTP LNMT 1006 ER (2) 6.50 10.50 9.96 1.00 • • • 0.08-0.15 • FR-P - For machining aluminum, ER- For general applications, ETR- First priority for hardened steel (1) FR - Sharp cutting edge for unstable conditions and for ISO S material (2) Mounting this insert increases tool diameter by 0.1 mm For tools, see page: CR LNHT (410) ER ETR FR, FR-P ER- For general ETR- First priority FR-P- For machining applications for hardened steel aluminum 450 ISCAR
