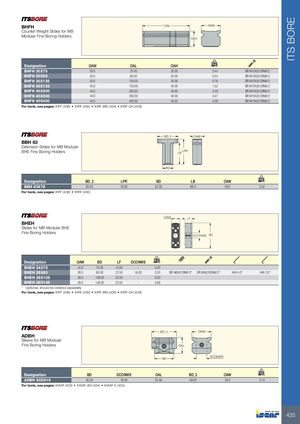

ITS BORE BHFH OAL OAW Counter Weight Slides for MB Modular Fine Boring Holders OAH Designation OAW OAL OAH kg BHFH 30X75 30.5 75.00 25.00 0.44 SR M10X25 DIN912 BHFH 30X93 30.5 93.00 25.00 0.54 SR M10X25 DIN912 BHFH 30X135 30.5 135.00 25.00 0.76 SR M10X25 DIN912 BHFH 40X133 40.0 133.00 40.00 1.52 SR M10X25 DIN912 BHFH 40X200 40.0 200.00 40.00 2.30 SR M10X25 DIN912 BHFH 40X300 40.0 300.00 40.00 3.47 SR M10X25 DIN912 BHFH 40X400 40.0 400.00 40.00 4.56 SR M10X25 DIN912 For tools, see pages: IHFF (436) • IHRF (436) • IHRF-BW (439) • IHRF-CH (439) BD_2 OAW BBH 63 Extension Slides for MB Modular BHE Fine Boring Holders LB LPR BD Designation BD_2 LPR BD LB OAW kg BBH 63X78 63.00 78.00 32.00 66.0 28.0 0.52 For tools, see pages: IHFF (436) • IHRF (436) OAW LF BHEH Slides for MB Modular BHE Fine Boring Holders DCONWS BD Designation OAW BD LF DCONWS kg BHEH 24X75 24.0 75.00 14.50 - 0.20 BHEH 28X80 28.0 80.00 22.50 16.00 0.33 SR M6X6 DIN913* SR M5X25DIN912* HW 4.0* HW 3.0* BHEH 28X108 28.0 108.00 22.50 - 0.53 BHEH 28X148 28.0 148.00 22.50 - 0.69 * Optional, should be ordered separately For tools, see pages: IHFF (436) • IHRF (436) • IHRF-BW (439) • IHRF-CH (439) BD_2 OAW ADBH Sleeve for MB Modular Fine Boring Holders OAL BD DCONWS Designation BD DCONWS OAL BD_2 OAW kg ADBH 30XD16 30.00 16.00 25.00 39.00 30.5 0.15 For tools, see pages: IHAXF (432) • IHAXF-AVI (434) • IHAXF-E (434) 435
