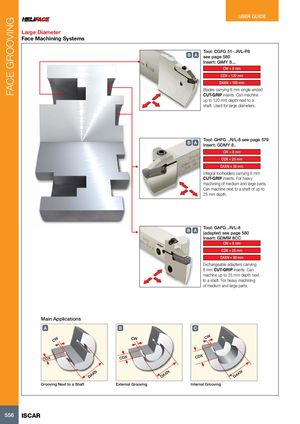

FACE GROOVING USER GUIDE Large Diameter Face Machining Systems Tool: CGFG 51-..R/L-P8 B A see page 580 Insert: GIMY 8… CW = 8 mm CDX = 120 mm DAXN = 180 mm Blades carrying 8 mm single-ended CUT-GRIP inserts. Can machine up to 120 mm depth next to a shaft. Used for large diameters. B A Tool: GHFG ..R/L-8 see page 579Insert: GDMY 8.. CW = 8 mm CDX = 25 mm DAXN = 50 mm Integral toolholders carrying 8 mm CUT-GRIP inserts. For heavy machining of medium and large parts. Can machine next to a shaft of up to 25 mm depth. B A Tool: GAFG ..R/L-8(adapter) see page 580 Insert: GDMM 8CC CW = 8 mm CDX = 25 mm DAXN = 80 mm Exchangeable adapters carrying 8 mm CUT-GRIP inserts. Can machine up to 25 mm depth next to a shaft. For heavy machining of medium and large parts. Main Applications A B C CW CW CW CDX CDX CDX DAXN DAXN DAXN Grooving Next to a Shaft External Grooving Internal Grooving 556 ISCAR
