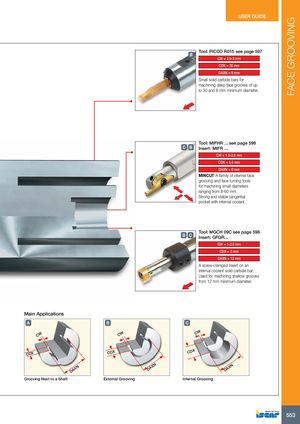

FACE GROOVING USER GUIDE Tool: PICCO R015 see page 597 B CW = 2.5-3 mm CDX = 30 mm DAXN = 8 mm Small solid carbide bars for machining deep face grooves of up to 30 and 8 mm minimum diameter. Tool: MIFHR ... see page 598 C B Insert: MIFR … CW = 1.5-3.5 mm CDX = 5.5 mm DAXN = 8 mm MINCUT-A family of internal face grooving and face turning tools for machining small diameters ranging from 8-60 mm. Strong and stable tangential pocket with internal coolant. Tool: MGCH 09C see page 598 B C Insert: GFQR… CW = 1-2.5 mm CDX = 3 mm DAXN = 12 mm A screw-clamped insert on an internal coolant solid carbide bar. Used for machining shallow grooves from 12 mm minimum diameter. Main Applications A B C CW CW CW CDX CDX CDX DAXN DAXN DAXN Grooving Next to a Shaft External Grooving Internal Grooving 553
