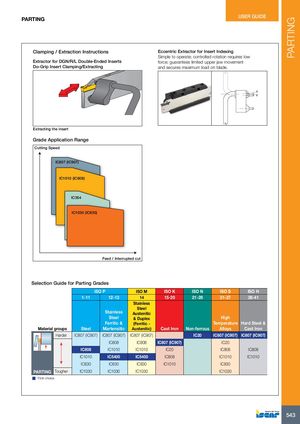

Каталог Iscar отрезка 2022 - страница 85

PARTING PARTING USER GUIDE Clamping / Extraction Instructions Eccentric Extractor for Insert Indexing Simple to operate; controlled rotation requires low Extractor for DGN/R/L Double-Ended Inserts force; guarantees limited upper jaw movement Do-Grip Insert Clamping/Extracting and secures maximum load on blade. Extracting the insert Grade Application Range Cutting Speed IC807 (IC907) IC1010 (IC808) IC354 IC1030 (IC830) Feed / Interrupted cut Selection Guide for Parting Grades ISO P ISO M ISO K ISO N ISO S ISO H 1-11 12-13 14 15-20 21-28 31-37 38-41 Stainless Steel Stainless Austenitic Steel & Duplex High Ferritic & (Ferritic - Temperature Hard Steel & Material groups Steel Martensitic Austenitic) Cast Iron Non-ferrous Alloys Cast Iron Harder IC807 (IC907) IC807 (IC907) IC807 (IC907) IC20 IC807 (IC907) IC807 (IC907) IC808 IC808 IC807 (IC907) IC20 IC808 IC1010 IC1010 IC20 IC808 IC808 IC1010 IC5400 IC5400 IC808 IC1010 IC1010 IC830 IC830 IC830 IC1010 IC830 PARTING Tougher IC1030 IC1030 IC1030 IC1030 First choice 543
