Каталог Iscar отрезка 2022 - страница 66

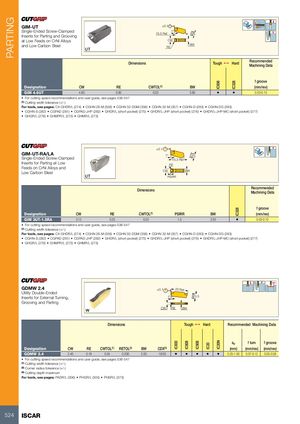

PARTING IC830 IC808 IC908 IC20 IC656IC20N IC328 IC328 GIM-UT ±0.1 Single-Ended Screw-ClampedInserts for Parting and Grooving 7°15.3 Ref. 5 at Low Feeds on CrNi Alloys CW and Low Carbon Steel BWRE Dimensions Tough 1  Hard RecommendedMachining Data f groove Designation CW RE CWTOL(1) BW (mm/rev) GIM 4.6UT 4.60 0.60 0.03 3.80 • • 0.03-0.10 • For cutting speed recommendations and user guide, see pages 538-547 (1) Cutting width tolerance (+/-) For tools, see pages: C#-GHDR/L (274) • CGHN 26-M (356) • CGHN 32-DGM (358) • CGHN 32-M (357) • CGHN-D (283) • CGHN-DG (283) • CGHN-S (282) • CGPAD (281) • CGPAD-JHP (282) • GHDR/L (short pocket) (275) • GHDR/L-JHP (short pocket) (276) • GHDR/L-JHP-MC (short pocket) (277) • GHGR/L (278) • GHMPR/L (273) • GHMR/L (273) ±0.1 GIM-UT-RA/LASingle-Ended Screw-Clamped 7° 515.3 Ref. Inserts for Parting at Low RE Feeds on CrNi Alloys and Low Carbon Steel CW BW PSIRR Dimensions RecommendedMachining Data f groove Designation CW RE CWTOL(1) PSIRR BW (mm/rev) GIM 3UT-1.5RA 3.12 0.25 0.03 1.5 2.50 • 0.03-0.10 • For cutting speed recommendations and user guide, see pages 538-547 (1) Cutting width tolerance (+/-) For tools, see pages: C#-GHDR/L (274) • CGHN 26-M (356) • CGHN 32-DGM (358) • CGHN 32-M (357) • CGHN-D (283) • CGHN-DG (283) • CGHN-S (282) • CGPAD (281) • CGPAD-JHP (282) • GHDR/L (short pocket) (275) • GHDR/L-JHP (short pocket) (276) • GHDR/L-JHP-MC (short pocket) (277) • GHGR/L (278) • GHMPR/L (273) • GHMR/L (273) GDMW 2.4 ±0.1 20 Ref. Utility Double-Ended Inserts for External Turning, 7˚ 5.5 Grooving and Parting CW RE BW Dimensions Tough 1  Hard Recommended Machining Data ap f turn f groove Designation CW RE CWTOL(1) RETOL(2) BW CDX(3) (mm) (mm/rev) (mm/rev) GDMW 2.4 2.40 0.18 0.04 0.030 2.00 18.00 • • • • • 0.25-1.50 0.07-0.12 0.05-0.08 • For cutting speed recommendations and user guide, see pages 538-547 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Cutting depth maximum For tools, see pages: PADR/L (306) • PHGR/L (305) • PHSR/L (373) 524 ISCAR
