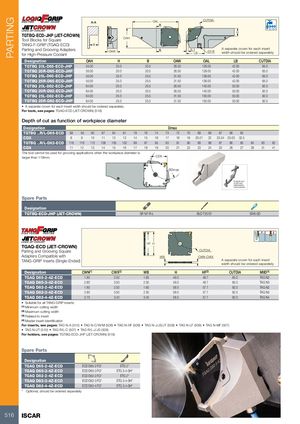

Каталог Iscar отрезка 2022 - страница 58

PARTING A-A OAL CUTDIA A Bar Max H TGTBQ-ECD-JHP (JET-CROWN) Tool Blocks for Square OAH TANG-F-GRIP (TGAQ-ECD) B Parting and Grooving Adapters OAWfor High-Pressure Coolant A 6.1LB A separate crown for each insertG1/8width should be ordered separately Designation OAH H B OAW OAL LB CUTDIA TGTBQ 20L-D65-ECD-JHP 55.00 20.0 20.5 26.50 129.00 42.00 65.0 TGTBQ 20R-D65-ECD-JHP 55.00 20.0 20.5 26.50 129.00 42.00 65.0 TGTBQ 25L-D65-ECD-JHP 55.00 25.0 25.5 31.50 139.00 42.00 65.0 TGTBQ 25R-D65-ECD-JHP 55.00 25.0 25.5 31.50 139.00 42.00 65.0 TGTBQ 20L-D82-ECD-JHP 64.00 20.0 20.5 26.50 140.00 53.00 82.0 TGTBQ 20R-D82-ECD-JHP 64.00 20.0 20.5 26.50 140.00 53.00 82.0 TGTBQ 25L-D82-ECD-JHP 64.00 25.0 25.5 31.50 150.00 53.00 82.0 TGTBQ 25R-D82-ECD-JHP 64.00 25.0 25.5 31.50 150.00 53.00 82.0 • A separate crown for each insert width should be ordered separately. For tools, see pages: TGAQ-ECD (JET-CROWN) (516) Depth of cut as function of workpiece diameter Designation Dmax TGTBQ ..R/L-D65-ECD 98 95 90 87 84 81 78 76 74 73 72 70 69 68 67 66 65 CDX 8 9 10 11 12 13 14 15 16 17 18 19 20-21 22 23-24 25-33 32.5 TGTBQ ..R/L-D82-ECD 118 116 112 108 105 102 99 97 95 93 91 90 89 88 87 86 85 84 83 82 CDX 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 31 41 The tool cannot be used for grooving applications when the workpiece diameter is larger than 118mm. CDX ØDmax Spare Parts Designation TGTBQ-ECD-JHP (JET-CROWN) SR M7-R-L BLD T20/S7 SW6-SD HF H TGAQ-ECD (JET-CROWN) Parting and Grooving Square CUTDIA Adapters Compatible with WB CWN-CWX TANG-GRIP Inserts (Single-Ended) A separate crown for each insert width should be ordered separately Designation CWN(1) CWX(2) WB H HF(3) CUTDIA MIID(4) TGAQ D65-2-4Z-ECD 1.80 2.50 1.65 49.0 48.7 65.0 TAG N2 TGAQ D65-3-4Z-ECD 2.80 3.50 2.50 49.0 48.7 65.0 TAG N3 TGAQ D82-2-4Z-ECD 1.80 2.50 1.65 58.0 57.7 82.0 TAG N2 TGAQ D82-3-4Z-ECD 2.80 3.50 2.50 58.0 57.7 82.0 TAG N3 TGAQ D82-4-4Z-ECD 3.70 3.40 3.40 58.0 57.7 82.0 TAG N4 • Suitable for all TANG-GRIP inserts (1) Minimum cutting width (2) Maximum cutting width (3) Related to insert (4) Master insert identification For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-HF (506) • TAG N-J/JS/JT (508) • TAG N-LF (509) • TAG N-MF (507) • TAG N-UT (510) • TAG R/L-C (507) • TAG R/L-J/JS (509) For holders, see pages: TGTBQ-ECD-JHP (JET-CROWN) (516) Spare Parts Designation TGAQ D65-2-4Z-ECD ECD D65-2-TG* ETG 2* TGAQ D65-3-4Z-ECD ECD D65-3-TG* ETG 3-4-SH* TGAQ D82-2-4Z-ECD ECD D82-2-TG* ETG 2* TGAQ D82-3-4Z-ECD ECD D82-3-TG* ETG 3-4-SH* TGAQ D82-4-4Z-ECD ECD D82-4-TG* ETG 3-4-SH* * Optional, should be ordered separately 516 ISCAR
