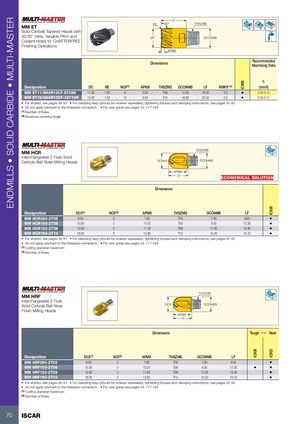

ENDMILLS • SOLID CARBIDE • MULTI-MASTER IC908 IC908 IC908IC903 LF Rd° RE 82° THSZMS MM ET Solid Carbide Tapered Heads with 20/30° Helix, Variable Pitch and DC DCONMS Coolant Holes for CHATTERFREE Finishing Operations APMX Dimensions RecommendedMachining Data fz Designation DC RE NOF(1) APMX THSZMS DCONMS LF RMPX°(2) (mm/t) MM ET11/8H4R10CF-8T08H 11.00 1.00 8 3.50 T08 12.00 16.50 3.0 • 0.04-0.10 MM ET15/8H4R10CF-12T10H 15.00 1.00 12 3.50 T10 16.00 20.50 3.0 • 0.05-0.11 • For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184 (1) Number of flutes (2) Maximum ramping angle MM HCR THSZMS Interchangeable 2 Flute Solid Carbide Ball Nose Milling Heads DCXh9 DCONMS APMX LF ECONOMICAL SOLUTION Dimensions Designation DCX(1) NOF(2) APMX THSZMS DCONMS LF MM HCR080-2T05 8.00 2 7.80 T05 7.60 9.95 • MM HCR100-2T06 10.00 2 10.00 T06 9.50 12.35 • MM HCR120-2T08 12.00 2 11.45 T08 11.50 15.30 • MM HCR160-2T10 16.00 2 15.80 T10 15.20 19.10 • • For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184 (1) Cutting diameter maximum (2) Number of flutes THSZMS MM HRF Interchangeable 2 Flute Solid Carbide Ball Nose DCX DCONMS Finish Milling Heads APMX LF Dimensions Tough 1  Hard Designation DCX(1) NOF(2) APMX THSZMS DCONMS LF MM HRF080-2T05 8.00 2 7.60 T05 7.60 9.95 • MM HRF100-2T06 10.00 2 10.20 T06 9.50 12.35 • • MM HRF120-2T08 12.00 2 11.50 T08 11.50 15.30 • MM HRF160-2T10 16.00 2 15.80 T10 15.20 19.10 • • For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184 (1) Cutting diameter maximum (2) Number of flutes 70 ISCAR
