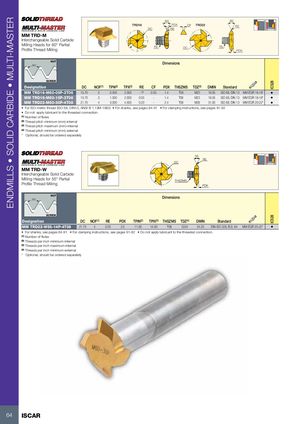

ENDMILLS • SOLID CARBIDE • MULTI-MASTER IC528IC528 60 60 TRD16 PDX CF TRD22 RE DC RE MM TRD-M Interchangeable Solid Carbide Milling Heads for 60° PartialProfile Thread Milling TS DC TS PDX NUT60° Dimensions SCREW Designation DC NOF(1) TPN(2) TPX(3) RE CF PDX THSZMS TDZ(4) DMIN Standard MM TRD16-M60-05P-3T06 15.70 3 0.500 2.000 - (5) 0.05 1.4 T06 M20 19.05 ISO 68, DIN 13 MM EGR 16-18* • MM TRD16-M60-15P-3T06 15.70 3 1.500 2.000 0.05 - 1.4 T06 M22 19.05 ISO 68, DIN 13 MM EGR 16-18* • MM TRD22-M60-30P-4T08 21.70 4 3.000 4.500 0.20 - 2.4 T08 M36 31.00 ISO 68, DIN 13 MM EGR 20-22* • • For ISO metric thread (ISO 68, DIN13, ANSI B 1.13M-1983) • For shanks, see pages 84-91 • For clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection. (1) Number of flutes (2) Thread pitch minimum (mm)-internal (3) Thread pitch maximum (mm)-internal (4) Thread pitch minimum (mm)-external * Optional, should be ordered separately 55 RE DC MM TRD-W Interchangeable Solid Carbide Milling Heads for 55° Partial THSZMS Profile Thread Milling PDX NUT Dimensions 55° SCREW Designation DC NOF(1) RE PDX TPIN(2) TPIX(3) THSZMS TDZ(4) DMIN Standard MM TRD22-W55-14P-4T08 21.70 4 0.20 2.0 11.00 14.00 T08 G3/4 24.20 DIN ISO 228, B.S. 84 MM EGR 20-22* • • For shanks, see pages 84-91 • For clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection. (1) Number of flutes (2) Threads per inch minimum-internal (3) Threads per inch maximum-internal (4) Threads per inch minimum-external * Optional, should be ordered separately 64 ISCAR
