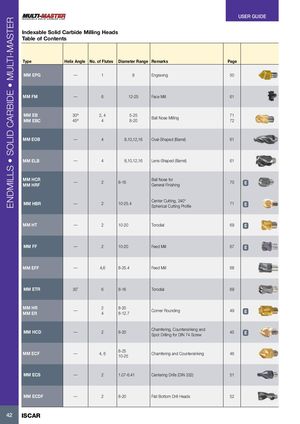

ENDMILLS • SOLID CARBIDE • MULTI-MASTER USER GUIDE Indexable Solid Carbide Milling Heads Table of Contents Type Helix Angle No. of Flutes Diameter Range Remarks Page MM EPG — 1 8 Engraving 50 MM FM — 6 12-25 Face Mill 61 MM EBMM EBC 30º 2, 445º4 5-258-20 Ball Nose Milling 7172 MM EOB — 4 8,10,12,16 Oval-Shaped (Barrel) 61 MM ELB — 4 8,10,12,16 Lens-Shaped (Barrel) 61 MM HCRMM HRF — 2 8-16 Ball Nose forGeneral Finishing 70 E MM HBR — 2 10-25.4 Center Cutting, 240°Spherical Cutting Profile71 E MM HT — 2 10-20 Torodial 69 E MM FF — 2 10-20 Feed Mill 67 E MM EFF — 4,6 8-25.4 Feed Mill 68 MM ETR 30˚ 6 8-16 Torodial 69 MM HRMM ER — 2 8-2048-12.7 Corner Rounding 49 E MM HCD — 2 8-20 Chamfering, Countersinking andSpot Drilling for DIN 74 Screw45E MM ECF — 4, 6 8-2510-25 Chamfering and Countersinking 46 MM ECS — 2 1.07-6.41 Centering Drills (DIN 332) 51 MM ECDF — 2 8-20 Flat Bottom Drill Heads 52 42 ISCAR
