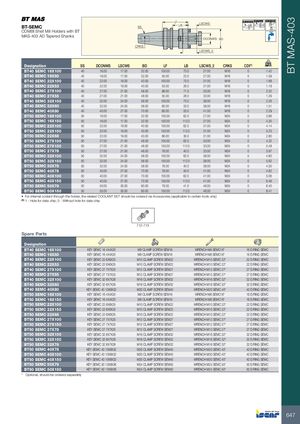

BT MAS-403 BT-SEMC SS LF LB LSCWS A 0.005 A AT3 Taper 58-60 HRc COMBI Shell Mill Holders with BT MAS-403 AD Tapered Shanks DCONWS BD CRKS LSCWS_2 Designation SS DCONWS LSCWS BD LF LB LSCWS_2 CRKS CDI(1) kg BT40 SEMC 16X100 40 16.00 17.00 32.00 100.00 73.0 27.00 M16 0 1.42 BT40 SEMC 16X50 40 16.00 17.00 32.00 50.00 23.0 27.00 M16 0 1.09 BT40 SEMC 22X100 40 22.00 19.00 40.00 100.00 73.0 31.00 M16 0 1.68 BT40 SEMC 22X53 40 22.00 19.00 40.00 53.00 26.0 31.00 M16 0 1.18 BT40 SEMC 27X100 40 27.00 21.00 48.00 98.00 71.0 33.00 M16 0 2.02 BT40 SEMC 27X55 40 27.00 21.00 48.00 55.00 28.0 33.00 M16 0 1.29 BT40 SEMC 32X100 40 32.00 24.00 58.00 100.00 73.0 38.00 M16 0 2.26 BT40 SEMC 32X60 40 32.00 24.00 58.00 60.00 33.0 38.00 M16 0 1.51 BT40 SEMC 40X80 40 40.00 27.00 70.00 80.00 53.0 41.00 M16 0 2.29 BT50 SEMC 16X100 50 16.00 17.00 32.00 100.00 62.0 27.00 M24 0 3.86 BT50 SEMC 16X150 50 16.00 17.00 32.00 150.00 112.0 27.00 M24 0 4.30 BT50 SEMC 22X100 50 22.00 19.00 40.00 100.00 62.0 31.00 M24 0 4.14 BT50 SEMC 22X150 50 22.00 19.00 40.00 150.00 112.0 31.00 M24 0 5.23 BT50 SEMC 22X68 50 22.00 19.00 40.00 68.00 30.0 31.00 M24 0 2.80 BT50 SEMC 27X100 50 27.00 21.00 48.00 100.00 62.0 33.00 M24 0 4.32 BT50 SEMC 27X150 50 27.00 21.00 48.00 150.00 112.0 33.00 M24 0 5.48 BT50 SEMC 27X78 50 27.00 21.00 48.00 78.00 40.0 33.00 M24 0 3.97 BT50 SEMC 32X100 50 32.00 24.00 58.00 100.00 62.0 38.00 M24 0 4.60 BT50 SEMC 32X150 50 32.00 24.00 58.00 150.00 112.0 38.00 M24 0 5.82 BT50 SEMC 32X78 50 32.00 24.00 58.00 78.00 40.0 38.00 M24 0 4.50 BT50 SEMC 40X78 50 40.00 27.00 70.00 78.00 40.0 41.00 M24 0 4.62 BT50 SEMC 40X100 50 40.00 27.00 70.00 100.00 62.0 41.00 M24 0 5.06 BT50 SEMC 40X150 50 40.00 27.00 70.00 150.00 112.0 41.00 M24 0 6.46 BT50 SEMC 50X79 50 50.00 30.00 90.00 79.00 41.0 46.00 M24 0 6.40 BT50 SEMC 50X150 50 50.00 30.00 90.00 150.00 112.0 46.00 M24 0 8.41 • For internal coolant through the holder, the related COOLANT SET should be ordered via Accessories (applicable to certain tools only) (1) 1 - Hole for data chip, 0 - Without hole for data chip 712-713 Spare Parts Designation BT40 SEMC 16X100 KEY SEMC 16 4X4X20 M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16* 16 D.RING SEMC BT40 SEMC 16X50 KEY SEMC 16 4X4X20 M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16* 16 D.RING SEMC BT40 SEMC 22X100 KEY SEMC 22 6X6X25 M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* 22 D.RING SEMC BT40 SEMC 22X53 KEY SEMC 22 6X6X25 M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* 22 D.RING SEMC BT40 SEMC 27X100 KEY SEMC 27 7X7X25 M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27* 27 D.RING SEMC BT40 SEMC 27X55 KEY SEMC 27 7X7X25 M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27* 27 D.RING SEMC BT40 SEMC 32X100 KEY SEMC 32 8X7X28 M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* 32 D.RING SEMC BT40 SEMC 32X60 KEY SEMC 32 8X7X28 M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* 32 D.RING SEMC BT40 SEMC 40X80 KEY SEMC 40 10X8X32 M20 CLAMP SCREW SEM40 WRENCH M20 SEMC 40* 40 D.RING SEMC BT50 SEMC 16X100 KEY SEMC 16 4X4X20 M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16* 16 D.RING SEMC BT50 SEMC 16X150 KEY SEMC 16 4X4X20 M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16* 16 D.RING SEMC BT50 SEMC 22X100 KEY SEMC 22 6X6X25 M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* 22 D.RING SEMC BT50 SEMC 22X150 KEY SEMC 22 6X6X25 M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* 22 D.RING SEMC BT50 SEMC 22X68 KEY SEMC 22 6X6X25 M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* 22 D.RING SEMC BT50 SEMC 27X100 KEY SEMC 27 7X7X25 M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27* 27 D.RING SEMC BT50 SEMC 27X150 KEY SEMC 27 7X7X25 M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27* 27 D.RING SEMC BT50 SEMC 27X78 KEY SEMC 27 7X7X25 M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27* 27 D.RING SEMC BT50 SEMC 32X100 KEY SEMC 32 8X7X28 M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* 32 D.RING SEMC BT50 SEMC 32X150 KEY SEMC 32 8X7X28 M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* 32 D.RING SEMC BT50 SEMC 32X78 KEY SEMC 32 8X7X28 M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* 32 D.RING SEMC BT50 SEMC 40X78 KEY SEMC 40 10X8X32 M20 CLAMP SCREW SEM40 WRENCH M20 SEMC 40* 40 D.RING SEMC BT50 SEMC 40X100 KEY SEMC 40 10X8X32 M20 CLAMP SCREW SEM40 WRENCH M20 SEMC 40* 40 D.RING SEMC BT50 SEMC 40X150 KEY SEMC 40 10X8X32 M20 CLAMP SCREW SEM40 WRENCH M20 SEMC 40* 40 D.RING SEMC BT50 SEMC 50X79 KEY SEMC 50 12X8X36 M24 CLAMP SCREW SEM50 WRENCH M24 SEMC 50* 50 D.RING SEMC BT50 SEMC 50X150 KEY SEMC 50 12X8X36 M24 CLAMP SCREW SEM50 WRENCH M24 SEMC 50* 50 D.RING SEMC * Optional, should be ordered separately 647
