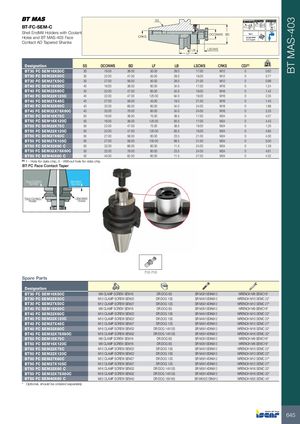

BT MAS-403 SS A 0.005 A AT3 Taper 58-60 HRc BT-FC-SEM-C Shell EndMill Holders with Coolant DCONWS BD G2.5 Holes and BT MAS-403 Face CRKS 20,000 RPM U<1.0 gmm Contact AD Tapered Shanks LB LSCWS LF Designation SS DCONWS BD LF LB LSCWS CRKS CDI(1) kg BT30 FC SEM16X50C 30 16.00 38.00 50.00 28.0 17.00 M12 0 0.62 BT30 FC SEM22X50C 30 22.00 47.00 50.00 28.0 19.00 M12 0 0.77 BT30 FC SEM27X50C 30 27.00 58.00 50.00 28.0 21.00 M12 0 0.88 BT40 FC SEM16X60C 40 16.00 38.00 60.00 34.0 17.00 M16 0 1.24 BT40 FC SEM22X60C 40 22.00 47.00 60.00 34.0 19.00 M16 0 1.42 BT40 FC SEM22X120C 40 22.00 47.00 120.00 94.0 19.00 M16 0 2.35 BT40 FC SEM27X45C 40 27.00 58.00 45.00 19.0 21.00 M16 0 1.45 BT40 FC SEM32X60C 40 32.00 66.00 60.00 34.0 24.00 M16 0 1.88 BT40 FC SEM32X78X60C 40 32.00 78.00 60.00 34.0 24.00 M16 0 2.25 BT50 FC SEM16X75C 50 16.00 38.00 75.00 38.5 17.00 M24 0 4.07 BT50 FC SEM16X120C 50 16.00 38.00 120.00 83.5 17.00 M24 0 4.43 BT50 FC SEM22X75C 50 22.00 47.00 75.00 38.5 19.00 M24 0 1.20 BT50 FC SEM22X120C 50 22.00 47.00 120.00 83.5 19.00 M24 0 4.85 BT50 FC SEM27X60C 50 27.00 58.00 60.00 23.5 21.00 M24 0 4.30 BT50 FC SEM27X105C 50 27.00 58.00 105.00 68.5 21.00 M24 0 5.00 BT50 FC SEM32X60 C 50 32.00 66.00 60.00 11.5 24.00 M24 0 1.29 BT50 FC SEM32X78X60C 50 32.00 78.00 60.00 23.5 24.00 M24 0 4.61 BT50 FC SEM40X60 C 50 40.00 82.00 60.00 11.5 27.00 M24 0 4.32 (1) 1 - Hole for data chip, 0 - Without hole for data chip BT-FC Face Contact Taper Face Contact Standard Spindle Spindle Face Contact Standard Holder Holder 712-713 Spare Parts Designation BT30 FC SEM16X50C M8 CLAMP SCREW SEM16 DR.DOG 8S SR M3X10DIN912 WRENCH M8 SEMC16* BT30 FC SEM22X50C M10 CLAMP SCREW SEM22 DR.DOG 10S SR M4X10DIN912 WRENCH M10 SEMC 22* BT30 FC SEM27X50C M12 CLAMP SCREW SEM27 DR.DOG 12S SR M5X14DIN912 WRENCH M12 SEMC 27* BT40 FC SEM16X60C M8 CLAMP SCREW SEM16 DR.DOG 8S SR M3X10DIN912 WRENCH M8 SEMC16* BT40 FC SEM22X60C M10 CLAMP SCREW SEM22 DR.DOG 10S SR M4X10DIN912 WRENCH M10 SEMC 22* BT40 FC SEM22X120C M10 CLAMP SCREW SEM22 DR.DOG 10S SR M4X10DIN912 WRENCH M10 SEMC 22* BT40 FC SEM27X45C M12 CLAMP SCREW SEM27 DR.DOG 12S SR M5X14DIN912 WRENCH M12 SEMC 27* BT40 FC SEM32X60C M16 CLAMP SCREW SEM32 DR.DOG 14X13S SR M5X14DIN912 WRENCH M16 SEMC 32* BT40 FC SEM32X78X60C M16 CLAMP SCREW SEM32 DR.DOG 14X13S SR M5X14DIN912 WRENCH M16 SEMC 32* BT50 FC SEM16X75C M8 CLAMP SCREW SEM16 DR.DOG 8S SR M3X10DIN912 WRENCH M8 SEMC16* BT50 FC SEM16X120C M8 CLAMP SCREW SEM16 DR.DOG 8S SR M3X10DIN912 WRENCH M8 SEMC16* BT50 FC SEM22X75C M10 CLAMP SCREW SEM22 DR.DOG 10S SR M4X10DIN912 WRENCH M10 SEMC 22* BT50 FC SEM22X120C M10 CLAMP SCREW SEM22 DR.DOG 10S SR M4X10DIN912 WRENCH M10 SEMC 22* BT50 FC SEM27X60C M12 CLAMP SCREW SEM27 DR.DOG 12S SR M5X14DIN912 WRENCH M12 SEMC 27* BT50 FC SEM27X105C M12 CLAMP SCREW SEM27 DR.DOG 12S SR M5X14DIN912 WRENCH M12 SEMC 27* BT50 FC SEM32X60 C M16 CLAMP SCREW SEM32 DR.DOG 14X13S SR M5X14DIN912 WRENCH M16 SEMC 32* BT50 FC SEM32X78X60C M16 CLAMP SCREW SEM32 DR.DOG 14X13S SR M5X14DIN912 WRENCH M16 SEMC 32* BT50 FC SEM40X60 C M20 CLAMP SCREW SEM40 DR.DOG 16X18S SR M6X20 DIN912 WRENCH M20 SEMC 40* * Optional, should be ordered separately 645
