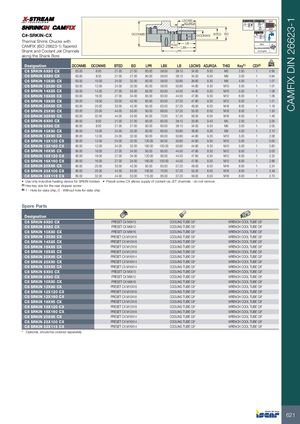

CAMFIX DIN 26623-1 LSCWS A 0.003 A 50-52 HRc ADJRGA C#-SRKIN-CX DCONMS 4.5° DCONWS BTED BD AT3 Taper Thermal Shrink Chucks withCAMFIX (ISO 26623-1) Tapered THID LB G2.5LBXSize 50,63=20,000RPM Shank and Coolant Jet Channels LPR U<1.0 gmm along the Shank Bore Designation DCONMS DCONWS BTED BD LPR LBX LB LSCWS ADJRGA THID Key(1) CDI(2) kg C6 SRKIN 6X80 CX 63.00 6.00 21.00 27.00 80.00 58.00 38.10 34.00 9.50 M5 2.50 1 0.95 C6 SRKIN 8X80 CX 63.00 8.00 21.00 27.00 80.00 58.00 38.10 34.00 9.50 M6 3.00 1 0.94 C6 SRKIN 10X80 CX 63.00 10.00 24.00 32.00 80.00 58.00 50.80 39.80 9.30 M8 4.00 1 1.07 C6 SRKIN 12X80 CX 63.00 12.00 24.00 32.00 80.00 58.00 50.80 44.80 9.30 M10 5.00 1 1.01 C6 SRKIN 14X85 CX 63.00 14.00 27.00 34.00 85.00 63.00 44.50 44.80 9.30 M10 5.00 1 1.08 C6 SRKIN 16X85 CX 63.00 16.00 27.00 34.00 85.00 63.00 44.50 47.80 9.30 M12 6.00 1 1.06 C6 SRKIN 18X85 CX 63.00 18.00 33.00 42.00 85.00 63.00 57.20 47.80 9.30 M12 6.00 1 1.21 C6 SRKIN 20X85 CX 63.00 20.00 33.00 42.00 85.00 63.00 57.20 49.00 8.50 M16 8.00 1 1.16 C6 SRKIN 25X90 CX 63.00 25.00 44.00 53.00 90.00 68.00 57.20 55.00 8.50 M16 8.00 1 1.50 C6 SRKIN 32X95 CX 63.00 32.00 44.00 53.00 95.00 73.00 57.20 59.00 8.50 M16 8.00 1 1.46 C8 SRKIN 6X90 CX 80.00 6.00 21.00 27.00 90.00 60.00 38.10 33.90 9.40 M5 2.50 1 2.05 C8 SRKIN 8X90 CX 80.00 8.00 21.00 27.00 90.00 60.00 38.10 34.00 9.50 M6 3.00 1 2.05 C8 SRKIN 10X90 CX 80.00 10.00 24.00 32.00 90.00 60.00 50.80 39.80 9.30 M8 4.00 1 2.10 C8 SRKIN 12X90 CX 80.00 12.00 24.00 32.00 90.00 60.00 50.80 44.80 9.30 M10 5.00 1 2.08 C8 SRKIN 12X120 CX 80.00 12.00 24.00 32.00 120.00 90.00 50.80 44.80 9.30 M10 5.00 1 0.00 C8 SRKIN 12X160 CX 80.00 12.00 24.00 32.00 160.00 130.00 50.80 44.80 9.30 M10 5.00 1 2.60 C8 SRKIN 16X95 CX 80.00 16.00 27.00 34.00 95.00 65.00 44.50 47.80 9.30 M12 6.00 1 0.00 C8 SRKIN 16X120 CX 80.00 16.00 27.00 34.00 120.00 90.00 44.50 47.80 9.30 M12 6.00 1 2.32 C8 SRKIN 16X160 CX 80.00 16.00 27.00 34.00 160.00 130.00 44.50 47.80 9.30 M12 6.00 1 2.66 C8 SRKIN 20X95 CX 80.00 20.00 33.00 42.00 95.00 65.00 57.20 49.00 8.50 M16 8.00 1 2.24 C8 SRKIN 25X100 CX 80.00 25.00 44.00 53.00 100.00 70.00 57.20 55.00 8.50 M16 8.00 1 2.49 C8 SRKIN 32X115 CX 80.00 32.00 44.00 53.00 115.00 85.00 57.20 59.00 8.50 M16 8.00 1 2.70 • Use only inductive heating device for SRKIN holders • Preset screw CX allows supply of coolant via JET channels - do not remove (1) Hex key size for the rear stopper screw (2) 1 - Hole for data chip, 0 - Without hole for data chip Spare Parts Designation C6 SRKIN 6X80 CX PRESET CX M5X13 COOLING TUBE C6* WRENCH COOL TUBE C6* C6 SRKIN 8X80 CX PRESET CX M6X12 COOLING TUBE C6* WRENCH COOL TUBE C6* C6 SRKIN 10X80 CX PRESET CX M8X16 COOLING TUBE C6* WRENCH COOL TUBE C6* C6 SRKIN 12X80 CX PRESET CX M10X16 COOLING TUBE C6* WRENCH COOL TUBE C6* C6 SRKIN 14X85 CX PRESET CX M10X16 COOLING TUBE C6* WRENCH COOL TUBE C6* C6 SRKIN 16X85 CX PRESET CX M12X16 COOLING TUBE C6* WRENCH COOL TUBE C6* C6 SRKIN 18X85 CX PRESET CX M12X16 COOLING TUBE C6* WRENCH COOL TUBE C6* C6 SRKIN 20X85 CX PRESET CX M16X14 COOLING TUBE C6* WRENCH COOL TUBE C6* C6 SRKIN 25X90 CX PRESET CX M16X14 COOLING TUBE C6* WRENCH COOL TUBE C6* C6 SRKIN 32X95 CX PRESET CX M16X14 COOLING TUBE C6* WRENCH COOL TUBE C6* C8 SRKIN 6X90 CX PRESET CX M5X13 COOLING TUBE C8* WRENCH COOL TUBE C8* C8 SRKIN 8X90 CX PRESET CX M6X12 COOLING TUBE C8* WRENCH COOL TUBE C8* C8 SRKIN 10X90 CX PRESET CX M8X16 COOLING TUBE C8* WRENCH COOL TUBE C8* C8 SRKIN 12X90 CX PRESET CX M10X16 COOLING TUBE C8* WRENCH COOL TUBE C8* C8 SRKIN 12X120 CX PRESET CX M10X16 COOLING TUBE C8* WRENCH COOL TUBE C8* C8 SRKIN 12X160 CX PRESET CX M10X16 COOLING TUBE C8* WRENCH COOL TUBE C8* C8 SRKIN 16X95 CX PRESET CX M12X16 COOLING TUBE C8* WRENCH COOL TUBE C8* C8 SRKIN 16X120 CX PRESET CX M12X16 COOLING TUBE C8* WRENCH COOL TUBE C8* C8 SRKIN 16X160 CX PRESET CX M12X16 COOLING TUBE C8* WRENCH COOL TUBE C8* C8 SRKIN 20X95 CX PRESET CX M16X14 COOLING TUBE C8* WRENCH COOL TUBE C8* C8 SRKIN 25X100 CX PRESET CX M16X14 COOLING TUBE C8* WRENCH COOL TUBE C8* C8 SRKIN 32X115 CX PRESET CX M16X14 COOLING TUBE C8* WRENCH COOL TUBE C8* * Optional, should be ordered separately 621
