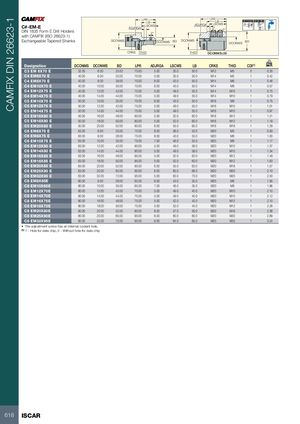

CAMFIX DIN 26623-1 C#-EM-EDIN 1835 Form E Drill Holders LPRLBLSCWS LPR LB A 0.005 A 58-60 HRcADJRGALSCWSADJRGA2°2°2° with CAMFIX (ISO 26623-1) Exchangeable Tapered Shanks DCONMS DCONWS BD DCONMS DCONWS BD CRKS THID THID DCONWS≥25 Designation DCONMS DCONWS BD LPR ADJRGA LSCWS LB CRKS THID CDI(1) kg C3 EM 6X70 E 32.00 6.00 25.00 70.00 5.00 35.0 50.0 M12 M5 0 0.30 C4 EM6X70 E 40.00 6.00 25.00 70.00 5.00 35.0 50.0 M14 M5 1 0.42 C4 EM8X70 E 40.00 8.00 28.00 70.00 8.00 43.0 50.0 M14 M6 1 0.46 C4 EM10X70 E 40.00 10.00 35.00 70.00 6.00 45.0 50.0 M14 M8 1 0.57 C4 EM12X75 E 40.00 12.00 42.00 75.00 5.00 49.0 55.0 M14 M10 1 0.75 C4 EM14X75 E 40.00 14.00 44.00 75.00 5.00 49.0 55.0 M14 M10 1 0.79 C5 EM10X70 E 50.00 10.00 35.00 70.00 6.00 45.0 50.0 M16 M8 1 0.75 C5 EM12X75 E 50.00 12.00 42.00 75.00 5.00 49.0 55.0 M16 M10 1 1.01 C5 EM14X75 E 50.00 14.00 44.00 75.00 5.00 49.0 55.0 M16 M10 1 0.97 C5 EM16X80 E 50.00 16.00 48.00 80.00 5.00 52.0 60.0 M16 M12 1 1.21 C5 EM18X80 E 50.00 18.00 50.00 80.00 5.00 52.0 60.0 M16 M12 1 1.18 C5 EM20X85 E 50.00 20.00 52.00 85.00 6.00 55.0 65.0 M16 M16 1 1.29 C6 EM6X75 E 63.00 6.00 25.00 75.00 6.00 36.0 53.0 M20 M5 1 0.93 C6 EM8X75 E 63.00 8.00 28.00 75.00 8.00 43.0 53.0 M20 M6 1 1.00 C6 EM10X75 E 63.00 10.00 35.00 75.00 7.00 46.0 53.0 M20 M8 1 1.17 C6 EM12X80 E 63.00 12.00 42.00 80.00 5.00 49.0 58.0 M20 M10 1 1.37 C6 EM14X80 E 63.00 14.00 44.00 80.00 5.00 49.0 58.0 M20 M10 1 1.34 C6 EM16X85 E 63.00 16.00 48.00 85.00 5.00 52.0 63.0 M20 M12 1 1.49 C6 EM18X85 E 63.00 18.00 50.00 85.00 5.00 52.0 63.0 M20 M12 1 1.63 C6 EM20X85 E 63.00 20.00 52.00 85.00 6.00 55.0 63.0 M20 M16 1 1.57 C6 EM25X90 E 63.00 25.00 65.00 90.00 6.00 60.0 68.0 M20 M20 1 2.10 C6 EM32X95 E 63.00 32.00 72.00 95.00 5.00 63.0 73.0 M20 M20 1 2.50 C8 EM8X65E 80.00 8.00 28.00 65.00 8.00 43.0 35.0 M20 M6 1 1.90 C8 EM10X65E 80.00 10.00 35.00 65.00 7.00 46.0 35.0 M20 M8 1 1.96 C8 EM12X70E 80.00 12.00 42.00 70.00 5.00 49.0 40.0 M20 M10 1 2.10 C8 EM14X70E 80.00 14.00 44.00 70.00 5.00 49.0 40.0 M20 M10 1 2.12 C8 EM16X75E 80.00 16.00 48.00 75.00 5.00 52.0 45.0 M20 M12 1 2.10 C8 EM18X75E 80.00 18.00 50.00 75.00 5.00 52.0 45.0 M20 M12 1 2.26 C8 EM20X80E 80.00 20.00 52.00 80.00 8.00 57.0 50.0 M20 M16 1 2.36 C8 EM25X90E 80.00 25.00 65.00 90.00 6.00 60.0 60.0 M20 M20 1 2.89 C8 EM32X95E 80.00 32.00 72.00 95.00 6.00 64.0 65.0 M20 M20 1 3.24 • The adjustment screw has an internal coolant hole. (1) 1 - Hole for data chip, 0 - Without hole for data chip 618 ISCAR
