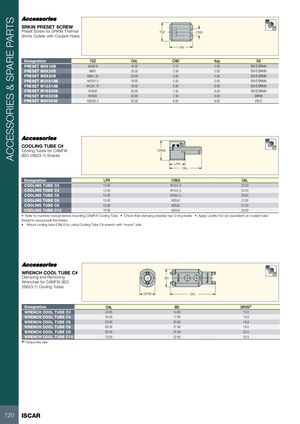

ACCESSORIES & SPARE PARTS Mount Remove SRKIN PRESET SCREW Preset Screw for SRKIN Thermal TDZ CND Shrink Collets with Coolant Holes OAL Designation TDZ OAL CND Key SS PRESET M5X18B M5X0.8 18.00 2.10 2.50 EM E/SRKIN PRESET M6X20B M6X1 20.00 2.50 3.00 EM E/SRKIN PRESET M8X20B M8X1.25 20.00 3.50 4.00 EM E/SRKIN PRESET M10X18B M10X1.5 18.00 4.50 5.00 EM E/SRKIN PRESET M12X18B M12X1.75 18.00 5.50 6.00 EM E/SRKIN PRESET M16X20B M16X2 20.00 7.50 6.00 EM E/SRKIN PRESET M16X25B M16X2 25.00 7.50 6.00 SRKIN PRESET M20X20E M20X2.5 20.00 6.00 6.00 EM E COOLING TUBE C# Cooling Tubes for CAMFIX CRKS (ISO 26623-1) Shanks LPR OAL Designation LPR CRKS OAL COOLING TUBE C3 10.00 M12x1.5 22.30 COOLING TUBE C4 12.00 M14x1.5 25.40 COOLING TUBE C5 14.00 M16x1.5 28.50 COOLING TUBE C6 15.00 M20x2 31.00 COOLING TUBE C8 15.00 M20x2 31.50 COOLING TUBE C10 16.00 M24x2 34.00 • Refer to machine manual before mounting CAMFIX Cooling Tube • Check that clamping drawbar has O-ring inside • Apply Loctite 542 (or equivalent) on coolant tube thread to secure/seal the thread • Mount cooling tube (ONLY) by using Cooling Tube C# wrench with "mount" side WRENCH COOL TUBE C# Clamping and Removing BD Wrenches for CAMFIX (ISO 26623-1) Cooling Tubes DRVS OAL Designation OAL BD DRVS(1) WRENCH COOL TUBE C3 40.00 14.80 12.0 WRENCH COOL TUBE C4 45.00 17.80 15.0 WRENCH COOL TUBE C5 50.00 20.80 16.9 WRENCH COOL TUBE C6 60.00 27.80 19.0 WRENCH COOL TUBE C8 60.00 31.80 22.0 WRENCH COOL TUBE C10 75.00 42.80 25.9 (1) Torque key size 720 ISCAR
