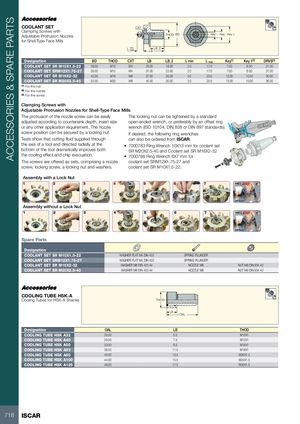

ACCESSORIES & SPARE PARTS COOLANT SET CXT Clamping Screws with Adjustable Protrusion Nozzles THOD BD Key 1 Key Key 2 for Shell-Type Face Mills L min max LB_2LB Designation BD THOD CXT LB LB_2 L min L max Key(1) Key 1(2) DRVS(3) COOLANT SET SR M10X1.5-22 28.00 M10 M4 25.00 18.00 2.0 17.0 7.00 6.00 21.00 COOLANT SET SRM12X1.75-27 35.00 M12 M4 31.00 22.00 2.0 17.0 7.00 6.00 27.00 COOLANT SET SR M16X2-32 42.00 M16 M8 37.00 26.00 3.0 25.0 13.00 10.00 30.00 COOLANT SET SR M20X2.5-40 52.00 M20 M8 45.00 30.00 3.0 25.0 13.00 10.00 36.00 (1) For the nut (2) For the nozzle (3) For the screw Clamping Screws with Adjustable Protrusion Nozzles for Shell-Type Face Mills The protrusion of the nozzle screw can be easily The locking nut can be tightened by a standard adjusted according to countersink depth, insert size open-ended wrench, or preferably by an offset ring or any other application requirement. The nozzle wrench (ISO 10104, DIN 838 or DIN 897 standards). screw position can be secured by a locking nut. If desired, the following ring wrenches Tests show that cutting fluid supplied through can also be ordered from ISCAR: the axis of a tool and directed radially at the • 7000783 Ring Wrench 10X13 mm for coolant set bottom of the tool dramatically improves both SR M20X2.5-40 and Coolant set SR M16X2-32 the cooling effect and chip evacuation. • 7000788 Ring Wrench 6X7 mm for The screws are offered as sets, comprising a nozzle coolant set SRM12X1.75-27 and screw, locking screw, a locking nut and washers. coolant set SR M10X1.5-22. Assembly with a Lock Nut 1 2 3 4 5 6 7 7103284 06/08 Assembly without a Lock Nut 1 2 3 4 5 6 7 Spare Parts Designation COOLANT SET SR M10X1.5-22 WASHER FLAT M4 DIN 433 SPRING PLUNGER COOLANT SET SRM12X1.75-27 WASHER FLAT M4 DIN 433 SPRING PLUNGER COOLANT SET SR M16X2-32 WASHER M8 DIN 433 A4 NOZZLE M8 NUT M8 DIN 934 A2 COOLANT SET SR M20X2.5-40 WASHER M8 DIN 433 A4 NOZZLE M8 NUT M8 DIN 934 A2 COOLING TUBE HSK-A Cooling Tubes for HSK-A Shanks THOD LB OAL Designation OAL LB THOD COOLING TUBE HSK A32 26.00 5.5 M10X1 COOLING TUBE HSK A40 29.50 7.5 M12X1 COOLING TUBE HSK A50 33.00 9.5 M16X1 COOLING TUBE HSK A63 36.50 11.5 M18X1 COOLING TUBE HSK A80 40.00 13.5 M20X1.5 COOLING TUBE HSK A100 44.00 15.5 M24X1.5 COOLING TUBE HSK A125 48.00 17.5 M30X1.5 718 ISCAR
