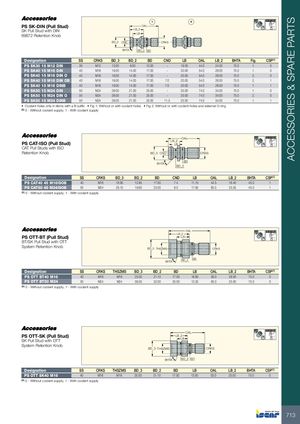

ACCESSORIES & SPARE PARTS 1 2 58-60 HRc PS SK-DIN (Pull Stud) OAL SK Pull Stud with DIN LB_2 69872 Retention Knob LB BD_3 CND CRKS BHTA BD_2 BD Designation SS CRKS BD_3 BD_2 BD CND LB OAL LB_2 BHTA Fig. CSP(1) PS SK30 15 M12 DIN 30 M12 13.00 9.00 13.00 - 19.00 44.0 24.00 75.0 1. 0 PS SK40 15 M16 DIN 40 M16 19.00 14.00 17.00 - 20.00 54.0 26.00 75.0 1. 0 PS SK40 15 M16 DIN O 40 M16 19.00 14.00 17.00 - 20.00 54.0 26.00 75.0 2. 0 PS SK40 15 M16 DIN OB 40 M16 19.00 14.00 17.00 7.0 20.00 54.0 26.00 75.0 2. 1 PS SK40 15 M16 DINB 40 M16 19.00 14.00 17.00 7.0 20.00 54.0 26.00 75.0 1. 1 PS SK50 15 M24 DIN 50 M24 28.00 21.00 25.00 - 25.00 74.0 34.00 75.0 1. 0 PS SK50 15 M24 DIN O 50 M24 28.00 21.00 25.00 - 25.00 74.0 34.00 75.0 2. 0 PS SK50 15 M24 DINB 50 M24 28.00 21.00 25.00 11.5 25.00 74.0 34.00 75.0 1. 1 • Coolant holes only in items with a B suffix • Fig 1: Without or with coolant holes • Fig 2: Without or with coolant holes and external O-ring (1) 0 - Without coolant supply, 1 - With coolant supply OAL 58-60 HRc PS CAT-ISO (Pull Stud) LB_2LB CAT Pull Studs with ISO Retention Knob BD_3 CND CRKS BD BHTA BD_2 Designation SS CRKS BD_3 BD_2 BD CND LB OAL LB_2 BHTA CSP(1) PS CAT40 45 M16ISOB 40 M16 18.95 12.95 17.00 7.4 11.15 44.5 16.40 45.0 1 PS CAT50 45 M24ISOB 50 M24 29.10 19.60 25.00 8.0 17.95 65.5 25.55 45.0 1 (1) 0 - Without coolant supply, 1 - With coolant supply OAL 58-60 HRc LB_2 PS OTT-BT (Pull Stud) LB BT/SK Pull Stud with OTT System Retention Knob BD_3 THSZMS CRKS BHTA BD_2 BD Designation SS CRKS THSZMS BD_3 BD_2 BD LB OAL LB_2 BHTA CSP(1) PS OTT BT40 M16 40 M16 M16 25.00 21.10 17.00 16.60 56.0 28.00 75.0 0 PS OTT BT50 M24 50 M24 M24 39.30 32.00 25.00 13.35 65.0 25.00 75.0 0 (1) 0 - Without coolant supply, 1 - With coolant supply 58-60 HRc OAL PS OTT-SK (Pull Stud)SK Pull Stud with OTT LB_2 LB System Retention Knob BD_3 THSZMS CRKS BHTA BD_2 BD Designation SS CRKS THSZMS BD_3 BD_2 BD LB OAL LB_2 BHTA CSP(1) PS OTT SK40 M16 40 M16 M16 25.00 21.10 17.00 13.00 53.0 25.00 75.0 0 (1) 0 - Without coolant supply, 1 - With coolant supply 713
