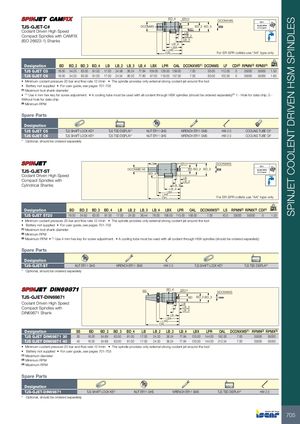

Каталог Iscar инструментальная оснастка 2022 - страница 157

SPINJET COOLENT DRIVEN HSM SPINDLES BD_4 ER11 DCONXWS G2.5 TJS-GJET-C#Coolant Driven High Speed DCONMS BD_2 BD_3BD 60,000 RPMU<1.0 gmmLB Compact Spindles with CAMFIX LB_2 (ISO 26623-1) Shanks LB_3 LB_4 LBX LPR OAL For ER-SPR collets use "AA" type only Designation BD BD_2 BD_3 BD_4 LB LB_2 LB_3 LB_4 LBX LPR OAL DCONXWS(1) DCONMS LF CDI(2) RPMN(3) RPMX(4) kg TJS GJET C5 16.00 54.25 63.00 81.00 17.00 24.58 36.24 77.84 109.00 129.00 159.00 7.00 50.00 112.00 0 35000 55000 1.50 TJS GJET C6 16.00 54.25 63.00 81.00 17.00 24.54 36.20 77.80 97.00 119.00 157.00 7.00 63.00 102.00 0 35000 55000 1.60 • Minimum coolant pressure 20 bar and flow rate 12 l/min • The spindle provides only external strong coolant jet around the tool • Battery not supplied • For user guide, see pages 701-703 (1) Maximum tool shank diameter • (1) Use 4 mm hex key for screw adjustment. • A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)(2) 1 - Hole for data chip, 0 - Without hole for data chip (3) Minimum RPM Spare Parts Designation TJS GJET C5 TJS SHAFT LOCK KEY TJS TSD DISPLAY* NUT ER11 GHS WRENCH ER11 SMS HW 2.0 COOLING TUBE C5* TJS GJET C6 TJS SHAFT LOCK KEY TJS TSD DISPLAY* NUT ER11 GHS WRENCH ER11 SMS HW 2.0 COOLING TUBE C6* * Optional, should be ordered separately LS ER11 DCONXWS G2.5 TJS-GJET-STCoolant Driven High Speed DCONMS h6 BD BD_2 BD_3 60,000 RPMBD_4U<1.0 gmm LB Compact Spindles with LB_2 Cylindrical Shanks LB_3 LB_4 LBX LPROAL For ER-SPR collets use "AA" type only Designation BD BD_2 BD_3 BD_4 LB LB_2 LB_3 LB_4 LBX LPR OAL DCONXWS(1) LS RPMN(2) RPMX(3) CDI(4) kg TJS GJET ST20 16.00 54.92 63.00 81.00 17.00 24.00 36.44 78.00 108.00 115.00 158.00 7.00 43.0 35000 55000 0 1.20 • Minimum coolant pressure 20 bar and flow rate 12 l/min • The spindle provides only external strong coolant jet around the tool • Battery not supplied • For user guide, see pages 701-703 (1) Maximum tool shank diameter (2) Minimum RPM (3) Maximum RPM • (1) Use 4 mm hex key for screw adjustment. • A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) Spare Parts Designation TJS-GJET-ST NUT ER11 GHS WRENCH ER11 SMS HW 2.0 TJS SHAFT LOCK KEY TJS TSD DISPLAY* * Optional, should be ordered separately SS BD_4 ER11 DCONXWS TJS-GJET-DIN69871 BD BD_2 BD_3 Coolant Driven High Speed LB Compact Spindles with LB_2 DIN69871 Shank LB_3 LB_4 LBX LPR OAL Designation SS BD BD_2 BD_3 BD_4 LB LB_2 LB_3 LB_4 LBX LPR OAL DCONXWS(1) RPMN(2) RPMX(3) TJS GJET DIN69871 30 30 16.00 54.69 63.00 81.00 17.00 24.20 36.24 77.84 125.00 144.00 192.00 7.00 35000 55000 TJS GJET DIN69871 40 40 16.00 54.69 63.00 81.00 17.00 24.20 36.24 77.84 125.00 144.00 212.54 7.00 35000 55000 • Minimum coolant pressure 20 bar and flow rate 12 l/min • The spindle provides only external strong coolant jet around the tool • Battery not supplied • For user guide, see pages 701-703 (1) Maximum diameter (2) Minimum RPM (3) Maximum RPM Spare Parts Designation TJS-GJET-DIN69871 TJS SHAFT LOCK KEY NUT ER11 GHS WRENCH ER11 SMS TJS TSD DISPLAY* HW 2.0 * Optional, should be ordered separately 705
