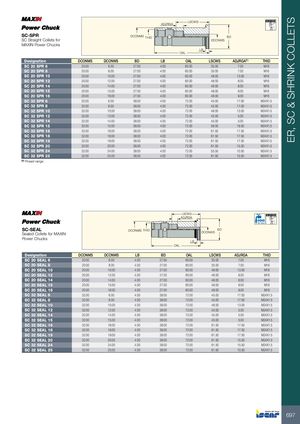

Каталог Iscar инструментальная оснастка 2022 - страница 149

ER, SC & SHRINK COLLETS LSCWS 58-60 HRc ADJRGA SC-SPRSC Straight Collets for DCONMS THID BDDCONWS MAXIN Power Chucks LB OAL Designation DCONMS DCONWS BD LB OAL LSCWS ADJRGA(1) THID SC 20 SPR 6 20.00 6.00 27.00 4.00 60.00 35.00 7.00 M16 SC 20 SPR 8 20.00 8.00 27.00 4.00 60.00 35.00 7.00 M16 SC 20 SPR 10 20.00 10.00 27.00 4.00 60.00 48.00 13.00 M16 SC 20 SPR 12 20.00 12.00 27.00 4.00 60.00 48.00 8.00 M16 SC 20 SPR 14 20.00 14.00 27.00 4.00 60.00 48.00 8.00 M16 SC 20 SPR 15 20.00 15.00 27.00 4.00 60.00 48.00 8.00 M16 SC 20 SPR 16 20.00 16.00 27.00 4.00 60.00 48.00 9.00 M16 SC 32 SPR 6 32.00 6.00 38.00 4.00 72.00 45.00 17.00 M24X1.5 SC 32 SPR 8 32.00 8.00 38.00 4.00 72.00 45.00 17.00 M24X1.5 SC 32 SPR 10 32.00 10.00 38.00 4.00 72.00 48.00 13.00 M24X1.5 SC 32 SPR 12 32.00 12.00 38.00 4.00 72.00 45.00 5.00 M24X1.5 SC 32 SPR 14 32.00 14.00 38.00 4.00 72.00 45.00 5.00 M24X1.5 SC 32 SPR 15 32.00 15.00 38.00 4.00 72.00 59.50 19.50 M24X1.5 SC 32 SPR 16 32.00 16.00 38.00 4.00 72.00 61.50 17.50 M24X1.5 SC 32 SPR 18 32.00 18.00 38.00 4.00 72.00 61.50 17.50 M24X1.5 SC 32 SPR 19 32.00 19.00 38.00 4.00 72.00 61.50 17.50 M24X1.5 SC 32 SPR 20 32.00 20.00 38.00 4.00 72.00 61.50 15.50 M24X1.5 SC 32 SPR 24 32.00 24.00 38.00 4.00 72.00 55.50 10.50 M24X1.5 SC 32 SPR 25 32.00 25.00 38.00 4.00 72.00 61.50 10.50 M24X1.5 (1) Preset range LSCWS 58-60 HRc ADJRGA Bar Max SC-SEALSealed Collets for MAXIN DCONMS THID BDDCONWS Power Chucks LB OAL Designation DCONMS DCONWS LB BD OAL LSCWS ADJRGA THID SC 20 SEAL 6 20.00 6.00 4.00 27.00 60.00 35.00 7.00 M16 SC 20 SEAL 8 20.00 8.00 4.00 27.00 60.00 35.00 7.00 M16 SC 20 SEAL 10 20.00 10.00 4.00 27.00 60.00 48.00 13.00 M16 SC 20 SEAL 12 20.00 12.00 4.00 27.00 60.00 48.00 8.00 M16 SC 20 SEAL 14 20.00 14.00 4.00 27.00 60.00 48.00 8.00 M16 SC 20 SEAL 15 20.00 15.00 4.00 27.00 60.00 48.00 8.00 M16 SC 20 SEAL 16 20.00 16.00 4.00 27.00 60.00 48.00 9.00 M16 SC 32 SEAL 6 32.00 6.00 4.00 38.00 72.00 45.00 17.00 M24X1.5 SC 32 SEAL 8 32.00 8.00 4.00 38.00 72.00 45.00 17.00 M24X1.5 SC 32 SEAL 10 32.00 10.00 4.00 38.00 72.00 48.00 13.00 M24X1.5 SC 32 SEAL 12 32.00 12.00 4.00 38.00 72.00 45.00 5.00 M24X1.5 SC 32 SEAL 14 32.00 14.00 4.00 38.00 72.00 45.00 5.00 M24X1.5 SC 32 SEAL 15 32.00 15.00 4.00 38.00 72.00 45.00 5.00 M24X1.5 SC 32 SEAL 16 32.00 16.00 4.00 38.00 72.00 61.50 17.50 M24X1.5 SC 32 SEAL 18 32.00 18.00 4.00 38.00 72.00 61.50 17.50 M24X1.5 SC 32 SEAL 19 32.00 19.00 4.00 38.00 72.00 61.50 17.50 M24X1.5 SC 32 SEAL 20 32.00 20.00 4.00 38.00 72.00 61.50 15.50 M24X1.5 SC 32 SEAL 24 32.00 24.00 4.00 38.00 72.00 61.50 15.50 M24X1.5 SC 32 SEAL 25 32.00 25.00 4.00 38.00 72.00 61.50 10.50 M24X1.5 697
