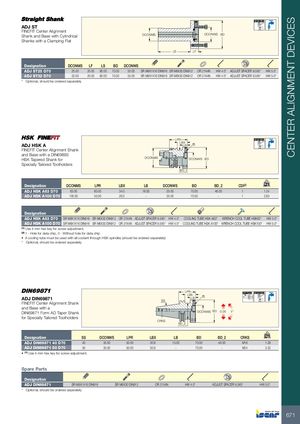

Каталог Iscar инструментальная оснастка 2022 - страница 123

CENTER ALIGNMENT DEVICES 58-60 HRc ADJ ST FINEFIT Center Alignment Shank and Base with Cylindrical DCONMS DCONWS BD Shanks with a Clamping Flat LS LF Designation DCONMS LF LS BD DCONWS ADJ ST25 D70 25.00 20.00 80.00 70.00 35.00 SR M8X1X16 DIN916 SR M6X30 DIN912 OR 21X4N HW 4.0* ADJUST SPACER 9.5X5* HW 5.0* ADJ ST32 D70 32.00 20.00 80.00 70.00 35.00 SR M8X1X16 DIN916 SR M6X30 DIN912 OR 21X4N HW 4.0* ADJUST SPACER 9.5X5* HW 5.0* * Optional, should be ordered separately LPR 58-60 HRc ADJ HSK A LBXLB (1) FINEFIT Center Alignment Shank and Base with a DIN69893 HSK Tapered Shank for DCONMS DCONWS BD Specially Tailored Toolholders BD_2 Designation DCONMS LPR LBX LB DCONWS BD BD_2 CDI(2) kg ADJ HSK A63 D70 63.00 60.00 34.0 18.00 35.00 70.00 46.00 1 1.24 ADJ HSK A100 D70 100.00 55.00 26.0 - 35.00 70.00 - 1 2.63 Designation ADJ HSK A63 D70 SR M8X1X16 DIN916 SR M6X30 DIN912 OR 21X4N ADJUST SPACER 9.5X5* HW 4.0* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* HW 5.0* ADJ HSK A100 D70 SR M8X1X16 DIN916 SR M6X30 DIN912 OR 21X4N ADJUST SPACER 9.5X5* HW 4.0* COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100* HW 5.0* (1) Use 4 mm hex key for screw adjustment. (2) 1 - Hole for data chip, 0 - Without hole for data chip • A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) * Optional, should be ordered separately LPRLBX (1) AT3 Taper 58-60 HRc ADJ DIN69871 LBSS FINEFIT Center Alignment Shank and Base with a DIN69871 Form AD Taper Shank DCONWS BD 0.05 1° for Specially Tailored Toolholders CRKS BD_2 Designation SS DCONWS LPR LBX LB BD BD_2 CRKS kg ADJ DIN69871 40 D70 40 35.00 50.00 30.9 15.00 70.00 46.00 M16 1.28 ADJ DIN69871 50 D70 50 35.00 50.00 30.9 - 70.00 - M24 3.32 • (1) Use 4 mm hex key for screw adjustment. Spare Parts Designation ADJ DIN69871 SR M8X1X16 DIN916 SR M6X30 DIN912 OR 21X4N HW 4.0* ADJUST SPACER 9.5X5* HW 5.0* * Optional, should be ordered separately 671
