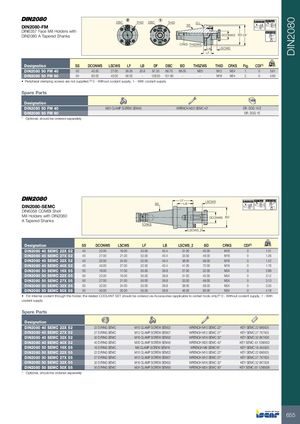

Каталог Iscar инструментальная оснастка 2022 - страница 107

DIN2080 2 1DBCTHIDDBCTHID G.L. A 0.005 A AT3 Taper DIN2080-FM SS DIN6357 Face Mill Holders with 58-60 HRc DIN2080 A Tapered Shanks DCONWS BD DF CRKS THSZWS LB LSCWS LF Designation SS DCONWS LSCWS LF LB DF DBC BD THSZWS THID CRKS Fig. CDI(1) kg DIN2080 50 FM 40 50 40.00 27.00 36.00 20.8 97.30 66.70 88.00 M20 M12 M24 1. 0 3.61 DIN2080 50 FM 60 50 60.00 40.00 36.00 - 128.00 101.60 - - M16 M24 2. 0 5.60 • Peripheral clamping screws are not supplied.(3) 0 - Without coolant supply, 1 - With coolant supply Spare Parts Designation DIN2080 50 FM 40 M20 CLAMP SCREW SEM40 WRENCH M20 SEMC 40* DR. DOG 16 E DIN2080 50 FM 60 DR. DOG 1E * Optional, should be ordered separately SS LF LB LSCWS A 0.005 A AT3 Taper 58-60 HRc DIN2080-SEMC DIN6358 COMBI Shell Mill Holders with DIN2080 DCONWS BD A Tapered Shanks CRKS LSCWS_2 Designation SS DCONWS LSCWS LF LB LSCWS_2 BD CRKS CDI(1) kg DIN2080 40 SEMC 22X 52 40 22.00 19.00 52.00 40.4 31.00 40.00 M16 0 1.01 DIN2080 40 SEMC 27X 52 40 27.00 21.00 52.00 40.4 33.00 48.00 M16 0 1.26 DIN2080 40 SEMC 32X 52 40 32.00 24.00 52.00 40.4 38.00 58.00 M16 0 1.42 DIN2080 40 SEMC 40X 52 40 40.00 27.00 52.00 40.4 41.00 70.00 M16 0 1.76 DIN2080 50 SEMC 16X 55 50 16.00 17.00 55.00 39.8 27.00 32.00 M24 0 2.89 DIN2080 50 SEMC 22X 55 50 22.00 19.00 55.00 39.8 31.00 40.00 M24 0 3.12 DIN2080 50 SEMC 27X 55 50 27.00 21.00 55.00 39.8 33.00 48.00 M24 0 3.13 DIN2080 50 SEMC 32X 55 50 32.00 24.00 55.00 39.8 38.00 58.00 M24 0 3.35 DIN2080 50 SEMC 50X 55 50 50.00 30.00 55.00 39.8 46.00 90.00 M24 0 4.18 • For internal coolant through the holder, the related COOLANT SET should be ordered via Accessories (applicable to certain tools only)(3) 0 - Without coolant supply, 1 - With coolant supply Spare Parts Designation DIN2080 40 SEMC 22X 52 22 D.RING SEMC M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* KEY SEMC 22 6X6X25 DIN2080 40 SEMC 27X 52 27 D.RING SEMC M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27* KEY SEMC 27 7X7X25 DIN2080 40 SEMC 32X 52 32 D.RING SEMC M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* KEY SEMC 32 8X7X28 DIN2080 40 SEMC 40X 52 40 D.RING SEMC M20 CLAMP SCREW SEM40 WRENCH M20 SEMC 40* KEY SEMC 40 10X8X32 DIN2080 50 SEMC 16X 55 16 D.RING SEMC M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16* KEY SEMC 16 4X4X20 DIN2080 50 SEMC 22X 55 22 D.RING SEMC M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* KEY SEMC 22 6X6X25 DIN2080 50 SEMC 27X 55 27 D.RING SEMC M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27* KEY SEMC 27 7X7X25 DIN2080 50 SEMC 32X 55 32 D.RING SEMC M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* KEY SEMC 32 8X7X28 DIN2080 50 SEMC 50X 55 50 D.RING SEMC M24 CLAMP SCREW SEM50 WRENCH M24 SEMC 50* KEY SEMC 50 12X8X36 * Optional, should be ordered separately 655
