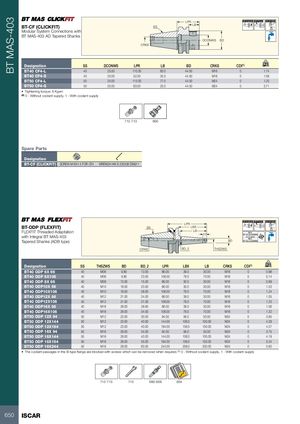

Каталог Iscar инструментальная оснастка 2022 - страница 102

BT MAS-403 LPR A 0.003 A AT3 Taper 58-60 HRc BT-CF (CLICKFIT) SS LB Modular System Connections with BT MAS-403 AD Tapered Shanks DCONWS BD CRKS Designation SS DCONWS LPR LB BD CRKS CDI(1) kg BT40 CF4-L 40 25.00 110.00 83.0 44.50 M16 0 1.74 BT40 CF4-S 40 25.00 52.00 25.0 44.50 M16 0 1.08 BT50 CF4-L 50 25.00 115.00 77.0 44.50 M24 0 1.20 BT50 CF4-S 50 25.00 63.00 25.0 44.50 M24 0 3.71 • Tightening torque: 6 Kgxm (3) 0 - Without coolant supply, 1 - With coolant supply 712-713 666 Spare Parts Designation BT-CF (CLICKFIT) SCREW M16X1.5 FOR CF4 WRENCH HW 8 200X36 DIN911 A 0.003 A AT3 Taper 58-60 HRc LPR BT-ODP (FLEXFIT) SS LBX FLEXFIT Threaded Adaptationwith Integral BT MAS-403 LB 10 G2.5BT 40=20,000RPMU<1.0 gmm G6.3 Tapered Shanks (ADB type) BD BT 50=12,000RPM CRKS BD_2 THSZWS Designation SS THSZWS BD BD_2 LPR LBX LB CRKS CDI(1) kg BT40 ODP 6X 66 40 M06 9.80 13.00 66.00 39.0 30.00 M16 0 0.98 BT40 ODP 6X106 40 M06 9.80 23.00 106.00 79.0 70.00 M16 0 0.14 BT40 ODP 8X 66 40 M08 13.00 15.00 66.00 30.0 30.00 M16 0 0.99 BT40 ODP10X 66 40 M10 18.00 20.00 66.00 30.0 30.00 M16 0 1.03 BT40 ODP10X106 40 M10 18.00 28.00 106.00 79.0 70.00 M16 0 1.24 BT40 ODP12X 66 40 M12 21.00 24.00 66.00 39.0 30.00 M16 0 1.05 BT40 ODP12X106 40 M12 21.00 31.00 106.00 79.0 70.00 M16 0 1.23 BT40 ODP16X 66 40 M16 29.00 28.60 66.00 39.0 35.00 M16 0 1.06 BT40 ODP16X106 40 M16 29.00 34.00 106.00 79.0 70.00 M16 0 1.32 BT50 ODP 12X 94 50 M12 23.00 30.00 94.00 56.0 50.00 M24 0 3.85 BT50 ODP 12X144 50 M12 23.00 40.00 144.00 106.0 100.00 M24 0 4.28 BT50 ODP 12X194 50 M12 23.00 40.00 194.00 156.0 150.00 M24 0 4.57 BT50 ODP 16X 94 50 M16 29.00 34.00 94.00 56.0 50.00 M24 0 3.75 BT50 ODP 16X144 50 M16 29.00 40.00 144.00 106.0 100.00 M24 0 4.19 BT50 ODP 16X194 50 M16 29.00 55.00 194.00 156.0 150.00 M24 0 5.24 BT50 ODP 16X244 50 M16 29.00 60.00 244.00 206.0 200.00 M24 0 5.60 • The coolant passages in the B-type flange are blocked with screws which can be removed when required.(3) 0 - Without coolant supply, 1 - With coolant supply 712-713 715 666-668 664 650 ISCAR
