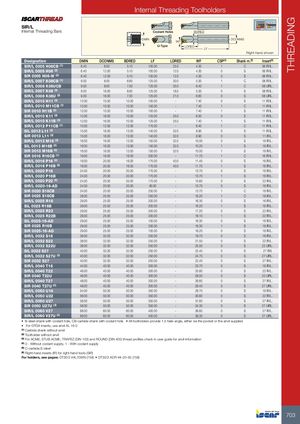

THREADING Internal Threading Toolholders SIR/L Internal Threading Bars Coolant Holes BDRED DMIN DCONMS WF U-Type LDRED LF Right-hand shown Designation DMIN DCONMS BDRED LF LDRED WF CSP(4) Shank m.(5) Insert(6) SIR/L 0005 H06CB (1) 6.40 6.00 5.10 100.00 25.0 4.30 1 C 06 IR/IL.. SIR/L 0005 H06 (2) 6.40 12.00 5.10 100.00 12.0 4.30 0 S 06 IR/IL.. SIR 0005 H06-W (2) 6.40 12.00 5.10 100.00 12.0 4.30 0 S 06 IR/IL.. SIR/L 0007 K08CB (1) 9.00 8.00 6.60 125.00 30.0 5.30 1 C 08 IR/IL.. SIR/L 0008 K08UCB 9.00 8.00 7.30 125.00 35.0 6.40 1 C 08 UIRL.. SIR/L 0007 K08 (2) 9.00 16.00 6.60 125.00 18.0 5.30 0 S 08 IR/IL.. SIR/L 0008 K08U (2) 9.00 16.00 7.30 125.00 21.0 6.60 0 S 08 UIRL.. SIR/L 0010 H11 (2) 12.00 10.00 10.00 100.00 - 7.40 0 S 11 IR/IL.. SIR/L 0010 M11CB (1) 12.00 10.00 10.00 150.00 - 7.40 1 C 11 IR/IL.. SIR 0010 H11B (2) 12.00 10.00 10.00 100.00 - 7.40 1 S 11 IR/IL.. SIR/L 0010 K11 (2) 12.00 16.00 10.00 125.00 25.0 6.50 0 S 11 IR/IL.. SIR/L 0010 K11B (2) 12.00 16.00 10.00 125.00 25.0 7.40 1 S 11 IR/IL.. SIR/L 0012 P11CB (1) 15.00 12.00 12.00 170.00 - 8.40 1 C 11 IR/IL.. SIL 0013 L11 (2) 15.00 16.00 13.00 140.00 32.0 8.90 0 S 11 IR/IL.. SIR 0013 L11 (2) 15.00 16.00 13.00 140.00 32.0 8.90 0 S 11 IR/L.. SIR/L 0013 M16 (2) 16.00 16.00 13.00 150.00 32.0 10.00 0 S 16 IR/L.. SIL 0013 M16B (2) 16.00 16.00 13.00 150.00 32.0 10.20 1 S 16 IR/L.. SIR 0013 M16B (2) 16.00 16.00 13.00 150.00 32.0 10.00 1 S 16 IR/L.. SIR 0016 R16CB (1) 19.00 16.00 16.00 200.00 - 11.70 1 C 16 IR/IL.. SIR/L 0016 P16 (2) 19.00 20.00 16.00 170.00 40.0 11.40 0 S 16 IR/L.. SIR/L 0016 P16B (2) 19.00 20.00 16.00 170.00 40.0 11.70 1 S 16 IR/L.. SIR/L 0020 P16 24.00 20.00 20.00 170.00 - 13.70 0 S 16 IR/L.. SIR/L 0020 P16B 24.00 20.00 20.00 170.00 - 13.70 1 S 16 IR/L.. SIR/L 0020 P22 (2) 24.00 20.00 20.00 170.00 - 15.60 0 S 22 IR/L.. SIR/L 0020-16-AD 24.00 20.00 20.00 80.00 - 13.70 0 S 16 IR/L.. SIR 0020 S16CB 24.00 20.00 20.00 250.00 - 13.70 1 C 16 IR/L.. SIR 0025 S16CB 28.00 25.00 25.00 250.00 - 16.20 1 C 16 IR/L.. SIR/L 0025 R16 29.00 25.00 25.00 200.00 - 16.30 0 S 16 IR/L.. SIL 0025 R16B 29.00 25.00 25.00 200.00 - 16.20 1 S 16 IR/L.. SIR/L 0025 R22 29.00 25.00 25.00 200.00 - 17.20 0 S 22 IR/L.. SIR/L 0025 R22B 29.00 25.00 25.00 200.00 - 18.10 1 S 22 IR/L.. SIL 0025-16-AD 29.00 25.00 25.00 100.00 - 16.30 0 S 16 IR/L.. SIR 0025 R16B 29.00 25.00 25.00 200.00 - 16.30 1 S 16 IR/L.. SIR 0025-16-AD 29.00 25.00 25.00 100.00 - 16.20 0 S 16 IR/L.. SIR/L 0032 S16 36.00 32.00 32.00 250.00 - 19.70 0 S 16 IR/L.. SIR/L 0032 S22 38.00 32.00 32.00 250.00 - 21.50 0 S 22 IR/L.. SIR/L 0032 S22U 38.00 32.00 32.00 250.00 - 25.50 0 S 22 UIRL.. SIL 0032 S27 40.00 32.00 32.00 250.00 - 22.40 0 S 27 IR/L SIR/L 0032 S27U (3) 40.00 32.00 32.00 250.00 - 24.70 0 S 27 UIRL.. SIR 0032 S27 40.00 32.00 32.00 250.00 - 22.40 0 S 27 IR/L.. SIR/L 0040 T16 44.00 40.00 40.00 300.00 - 23.70 0 S 16 IR/L.. SIR/L 0040 T22 46.00 40.00 40.00 300.00 - 25.80 0 S 22 IR/L.. SIR 0040 T22U 46.00 40.00 40.00 300.00 - 29.50 0 S 22 UIRL.. SIR/L 0040 T27 48.00 40.00 40.00 300.00 - 26.60 0 S 27 IR/L.. SIR 0040 T27U (3) 48.00 40.00 40.00 300.00 - 29.40 0 S 27 UIRL.. SIR/L 0050 U16 54.00 50.00 50.00 350.00 - 28.70 0 S 16 IR/L.. SIR/L 0050 U22 56.00 50.00 50.00 350.00 - 30.60 0 S 22 IR/L.. SIR/L 0050 U27 58.00 50.00 50.00 350.00 - 31.60 0 S 27 IR/L.. SIR 0050 U27U (3) 58.00 50.00 50.00 350.00 - 34.30 0 S 27 UIRL.. SIR/L 0060 V27 68.00 60.00 60.00 400.00 - 36.60 0 S 27 IR/L.. SIR/L 0060 V27U (3) 68.00 60.00 60.00 400.00 - 39.30 0 S 27 UIRL.. • B-steel shank with coolant hole, CB-carbide shank with coolant hole • All toolholders provide 1.5 helix angle, either via the pocket or the anvil supplied • For GTGA inserts, use anvil AL 16-0 (1) Carbide shank without anvil (2) Toolholder without anvil (3) For ACME, STUB ACME, TRAPEZ (DIN 103) and ROUND (DIN 405) thread profiles check in user guide for anvil information (4) 0 - Without coolant supply, 1 - With coolant supply (5) C-carbide,S-steel (6) Right-hand inserts (IR) for right-hand tools (SIR) For holders, see pages: DT30/2 ##L70WN (758) • DT30/2 ADR-##-20-55 (758) 703
