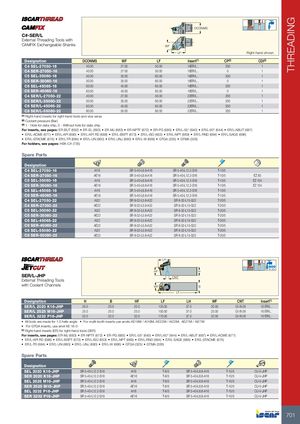

Каталог Iscar державки и пластины для нарезания резьбы 2022 - страница 67

THREADING DCONMS C#-SER/L External Threading Tools with CAMFIX Exchangeable Shanks WF LF Right-hand shown Designation DCONMS WF LF Insert(1) CP(2) CDI(3) C4 SEL-27050-16 40.00 27.00 50.00 16ER/L... 200 1 C4 SER-27050-16 40.00 27.00 50.00 16ER/L... 0 1 C5 SEL-35060-16 50.00 35.00 60.00 16ER/L... 200 1 C5 SER-35060-16 50.00 35.00 60.00 16ER/L... 0 1 C6 SEL-45065-16 63.00 45.00 65.00 16ER/L... 200 1 C6 SER-45065-16 63.00 45.00 65.00 16ER/L... 0 1 C4 SER/L-27050-22 40.00 27.00 50.00 22ER/L... 200 1 C5 SER/L-35060-22 50.00 35.00 60.00 22ER/L... 200 1 C6 SER/L-45065-22 63.00 45.00 65.00 22ER/L... 200 1 C8 SER/L-55080-22 80.00 55.00 80.00 22ER/L... 200 1 (1) Right-hand inserts for right-hand tools and vice versa (2) Coolant pressure (Bar) (3) 1 - Hole for data chip, 0 - Without hole for data chip For inserts, see pages: ER-BUT (692) • ER-EL (693) • ER-MJ (683) • ER-NPTF (672) • ER-PG (685) • ER/L-55° (640) • ER/L-60° (644) • ER/L-ABUT (687) • ER/L-ACME (677) • ER/L-API (690) • ER/L-API RD (688) • ER/L-BSPT (673) • ER/L-ISO (653) • ER/L-NPT (669) • ER/L-RND (694) • ER/L-SAGE (686) • ER/L-STACME (675) • ER/L-TR (684) • ER/L-UN (660) • ER/L-UNJ (680) • ER/L-W (666) • GTGA (325) • GTMA (326) For holders, see pages: HSK-C# (735) Spare Parts Designation C4 SEL-27050-16 AI16 SR 5-40-L6.8-A16 SR 5-40-L12.2-S16 T-10/5 C4 SER-27050-16 AE16 SR 5-40-L6.8-A16 SR 5-40-L12.2-S16 T-10/5 EZ 83 C5 SEL-35060-16 AI16 SR 5-40-L6.8-A16 SR 5-40-L12.2-S16 T-10/5 EZ 104 C5 SER-35060-16 AE16 SR 5-40-L6.8-A16 SR 5-40-L12.2-S16 T-10/5 EZ 104 C6 SEL-45065-16 AI16 SR 5-40-L6.8-A16 SR 5-40-L12.2-S16 T-10/5 C6 SER-45065-16 AE16 SR 5-40-L6.8-A16 SR 5-40-L12.2-S16 T-10/5 C4 SEL-27050-22 AI22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5 C4 SER-27050-22 AE22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5 C5 SEL-35060-22 AI22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5 C5 SER-35060-22 AE22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5 C6 SEL-45065-22 AI22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5 C6 SER-45065-22 AE22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5 C8 SEL-55080-22 AI22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5 C8 SER-55080-22 AE22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5 LH Bar Max HF H SER/L-JHP CNT External Threading Tools with Coolant Channels WF B LF Designation H B HF LF LH WF CNT Insert(1) SER/L 2020 K16-JHP 20.0 20.0 20.0 125.00 37.0 20.00 G1/8-28 16 ER/L.. SER/L 2525 M16-JHP 25.0 25.0 25.0 150.00 37.0 25.00 G1/8-28 16 ER/L.. SER/L 3232 P16-JHP 32.0 32.0 32.0 170.00 37.0 32.00 G1/8-28 16 ER/L.. • All tools are made for 1.5 helix angle • For multi-tooth inserts use anvils AE16M / AI16M; AE22M / AI22M; AE27M / AI27M • For GTGA inserts, use anvil AE 16-0 (1) Right-hand inserts (ER) for right-hand tools (SER) For inserts, see pages: ER-MJ (683) • ER-NPTF (672) • ER-PG (685) • ER/L-55° (640) • ER/L-60° (644) • ER/L-ABUT (687) • ER/L-ACME (677) • ER/L-API RD (688) • ER/L-BSPT (673) • ER/L-ISO (653) • ER/L-NPT (669) • ER/L-RND (694) • ER/L-SAGE (686) • ER/L-STACME (675) • ER/L-TR (684) • ER/L-UN (660) • ER/L-UNJ (680) • ER/L-W (666) • GTGA (325) • GTMA (326) Spare Parts Designation SEL 2020 K16-JHP SR 5-40-L12.2-S16 AI16 T-8/5 SR 5-40-L6.8-A16 T-10/5 CU-V-JHP SER 2020 K16-JHP SR 5-40-L12.2-S16 AE16 T-8/5 SR 5-40-L6.8-A16 T-10/5 CU-V-JHP SEL 2525 M16-JHP SR 5-40-L12.2-S16 AI16 T-8/5 SR 5-40-L6.8-A16 T-10/5 CU-V-JHP SER 2525 M16-JHP SR 5-40-L12.2-S16 AE16 T-8/5 SR 5-40-L6.8-A16 T-10/5 CU-V-JHP SEL 3232 P16-JHP SR 5-40-L12.2-S16 AI16 T-8/5 SR 5-40-L6.8-A16 T-10/5 CU-V-JHP SER 3232 P16-JHP SR 5-40-L12.2-S16 AE16 T-8/5 SR 5-40-L6.8-A16 T-10/5 CU-V-JHP 701
