Каталог Iscar инструмента для сверления - страница 82

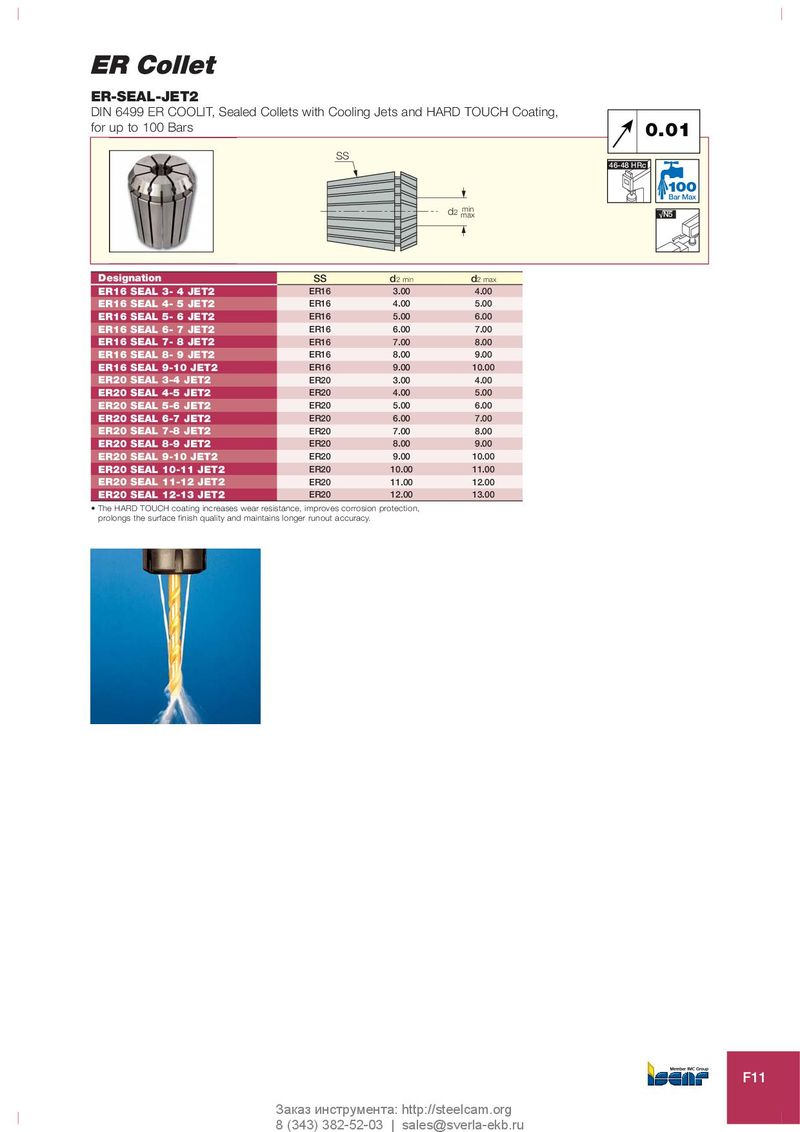

ER-SEAL-JET2 DIN 6499 ER COOLIT, Sealed Collets with Cooling Jets and HARD TOUCH Coating, for up to 100 Bars 0.01 SS 46-48 HRc Bar Max d2 min max √N5 Designation SS d 2 min d 2 max ER16 SEAL 3- 4 JET2 ER16 3.00 4.00 ER16 SEAL 4- 5 JET2 ER16 4.00 5.00 ER16 SEAL 5- 6 JET2 ER16 5.00 6.00 ER16 SEAL 6- 7 JET2 ER16 6.00 7.00 ER16 SEAL 7- 8 JET2 ER16 7.00 8.00 ER16 SEAL 8- 9 JET2 ER16 8.00 9.00 ER16 SEAL 9-10 JET2 ER16 9.00 10.00 ER20 SEAL 3-4 JET2 ER20 3.00 4.00 ER20 SEAL 4-5 JET2 ER20 4.00 5.00 ER20 SEAL 5-6 JET2 ER20 5.00 6.00 ER20 SEAL 6-7 JET2 ER20 6.00 7.00 ER20 SEAL 7-8 JET2 ER20 7.00 8.00 ER20 SEAL 8-9 JET2 ER20 8.00 9.00 ER20 SEAL 9-10 JET2 ER20 9.00 10.00 ER20 SEAL 10-11 JET2 ER20 10.00 11.00 ER20 SEAL 11-12 JET2 ER20 11.00 12.00 ER20 SEAL 12-13 JET2 ER20 12.00 13.00 • The HARD TOUCH coating increases wear resistance, improves corrosion protection, prolongs the surface finish quality and maintains longer runout accuracy. F11 Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
