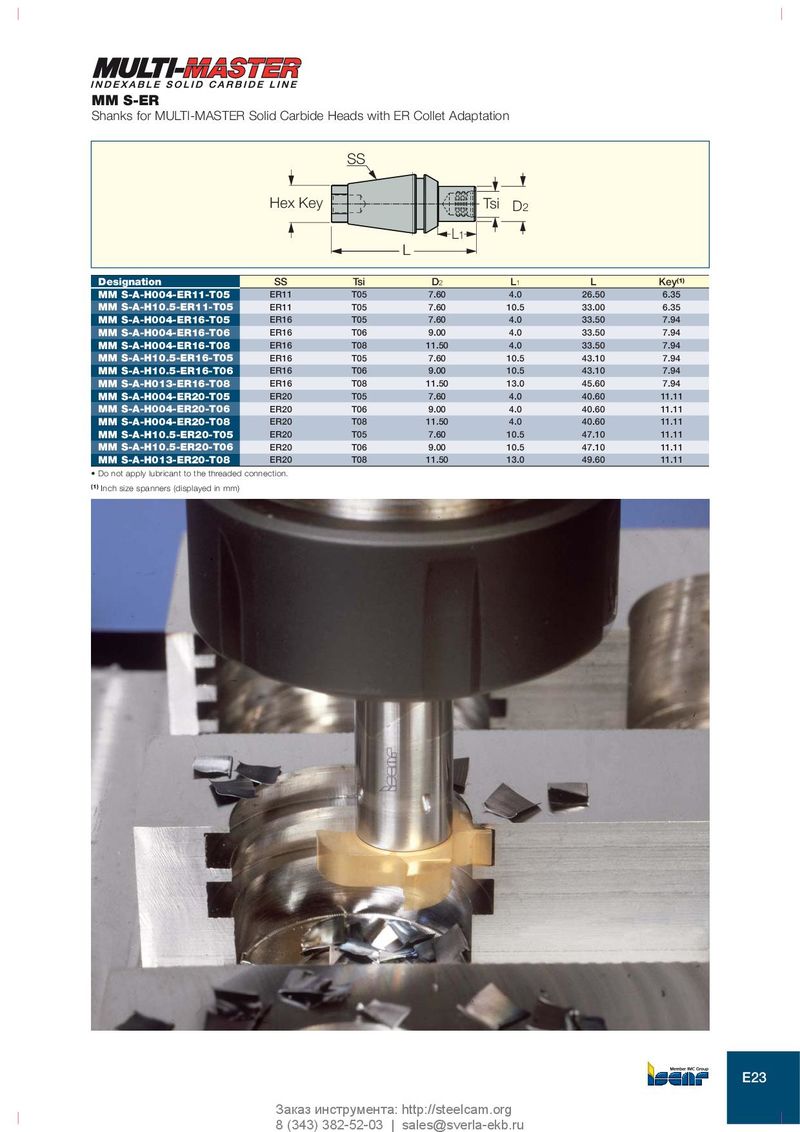

MM S-ER Shanks for MULTI-MASTER Solid Carbide Heads with ER Collet Adaptation SS Hex Key Tsi D2 L1 L Designation SS Tsi D 2 L 1 L Key (1) MM S-A-H004-ER11-T05 ER11 T05 7.60 4.0 26.50 6.35 MM S-A-H10.5-ER11-T05 ER11 T05 7.60 10.5 33.00 6.35 MM S-A-H004-ER16-T05 ER16 T05 7.60 4.0 33.50 7.94 MM S-A-H004-ER16-T06 ER16 T06 9.00 4.0 33.50 7.94 MM S-A-H004-ER16-T08 ER16 T08 11.50 4.0 33.50 7.94 MM S-A-H10.5-ER16-T05 ER16 T05 7.60 10.5 43.10 7.94 MM S-A-H10.5-ER16-T06 ER16 T06 9.00 10.5 43.10 7.94 MM S-A-H013-ER16-T08 ER16 T08 11.50 13.0 45.60 7.94 MM S-A-H004-ER20-T05 ER20 T05 7.60 4.0 40.60 11.11 MM S-A-H004-ER20-T06 ER20 T06 9.00 4.0 40.60 11.11 MM S-A-H004-ER20-T08 ER20 T08 11.50 4.0 40.60 11.11 MM S-A-H10.5-ER20-T05 ER20 T05 7.60 10.5 47.10 11.11 MM S-A-H10.5-ER20-T06 ER20 T06 9.00 10.5 47.10 11.11 MM S-A-H013-ER20-T08 ER20 T08 11.50 13.0 49.60 11.11 • Do not apply lubricant to the threaded connection. (1) Inch size spanners (displayed in mm) E23 Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
