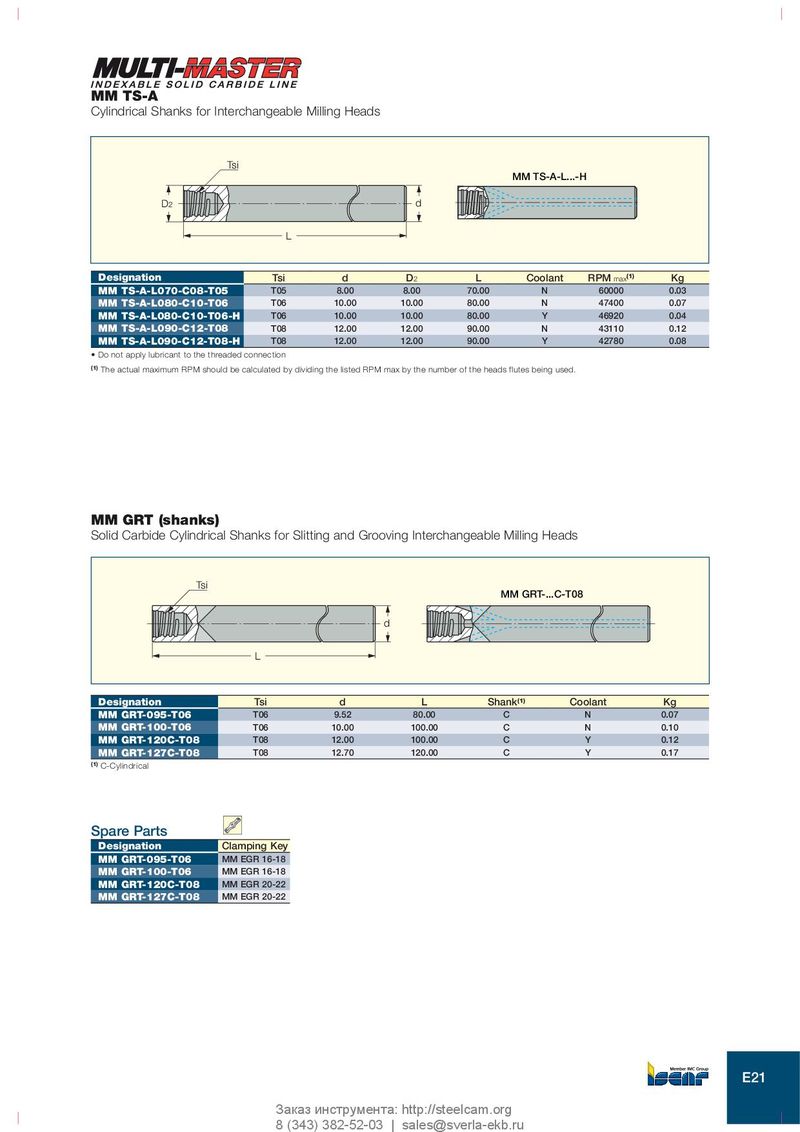

MM TS-A Cylindrical Shanks for Interchangeable Milling Heads Tsi MM TS-A-L...-H D2 d L Designation Tsi d D 2 L Coolant RPM max (1) Kg MM TS-A-L070-C08-T05 T05 8.00 8.00 70.00 N 60000 0.03 MM TS-A-L080-C10-T06 T06 10.00 10.00 80.00 N 47400 0.07 MM TS-A-L080-C10-T06-H T06 10.00 10.00 80.00 Y 46920 0.04 MM TS-A-L090-C12-T08 T08 12.00 12.00 90.00 N 43110 0.12 MM TS-A-L090-C12-T08-H T08 12.00 12.00 90.00 Y 42780 0.08 • Do not apply lubricant to the threaded connection (1) The actual maximum RPM should be calculated by dividing the listed RPM max by the number of the heads flutes being used. MM GRT (shanks) Solid Carbide Cylindrical Shanks for Slitting and Grooving Interchangeable Milling Heads Tsi MM GRT-...C-T08 d L Designation Tsi d L Shank (1) Coolant Kg MM GRT-095-T06 T06 9.52 80.00 C N 0.07 MM GRT-100-T06 T06 10.00 100.00 C N 0.10 MM GRT-120C-T08 T08 12.00 100.00 C Y 0.12 MM GRT-127C-T08 T08 12.70 120.00 C Y 0.17 (1) C-Cylindrical Spare Parts Designation Clamping Key MM GRT-095-T06 MM EGR 16-18 MM GRT-100-T06 MM EGR 16-18 MM GRT-120C-T08 MM EGR 20-22 MM GRT-127C-T08 MM EGR 20-22 E21 Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
