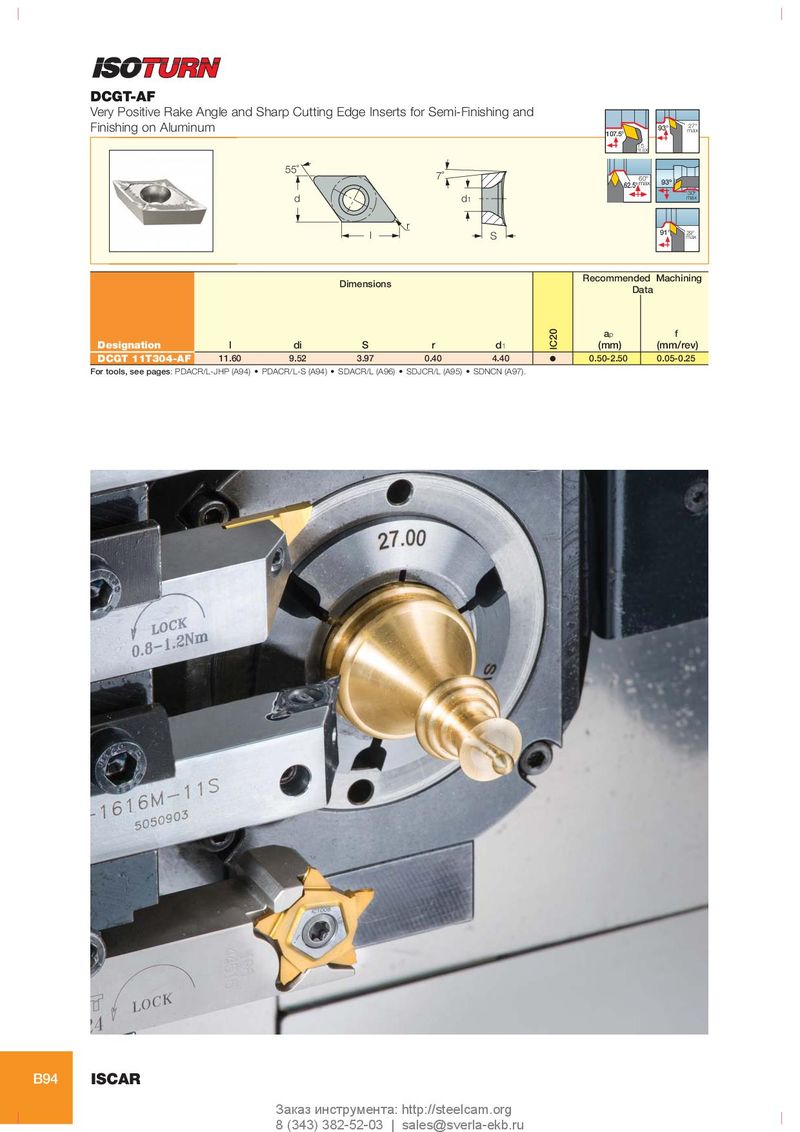

DCGT-AF Very Positive Rake Angle and Sharp Cutting Edge Inserts for Semi-Finishing and Finishing on Aluminum 93° 27° 107.5° max – TH_ 55˚ 7˚ 60° 62.5° max 93º 30º d d 1 max r 91° 29° l S max Recommended Machining Dimensions Data a p f Designation l di S r d 1 IC20 (mm) (mm/rev) DCGT 11T304-AF 11.60 9.52 3.97 0.40 4.40 O 0.50-2.50 0.05-0.25 For tools, see pages: PDACR/L-JHP (A94) • PDACR/L-S (A94) • SDACR/L (A96) • SDJCR/L (A95) • SDNCN (A97). B94 ISCAR Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
