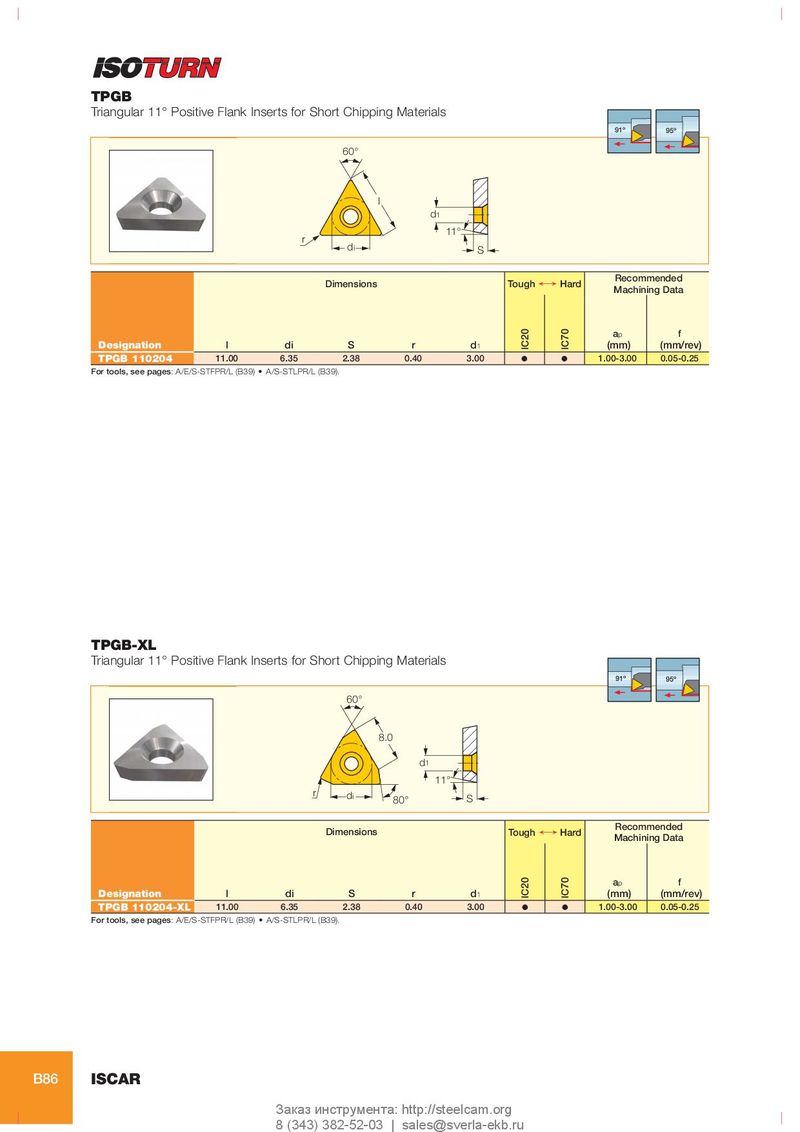

TPGB Triangular 11° Positive Flank Inserts for Short Chipping Materials 91º 95º 60° l d 1 11° r di S Recommended Dimensions Tough ¥ Hard Machining Data a p f Designation l di S r d 1 IC20 IC70 (mm) (mm/rev) TPGB 110204 11.00 6.35 2.38 0.40 3.00 O O 1.00-3.00 0.05-0.25 For tools, see pages: A/E/S-STFPR/L (B39) • A/S-STLPR/L (B39). TPGB-XL Triangular 11° Positive Flank Inserts for Short Chipping Materials 91º 95º 60° 8.0 d 1 11° r di 80° S Recommended Dimensions Tough ¥ Hard Machining Data a p f Designation l di S r d 1 IC20 IC70 (mm) (mm/rev) TPGB 110204-XL 11.00 6.35 2.38 0.40 3.00 O O 1.00-3.00 0.05-0.25 For tools, see pages: A/E/S-STFPR/L (B39) • A/S-STLPR/L (B39). B86 ISCAR Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
