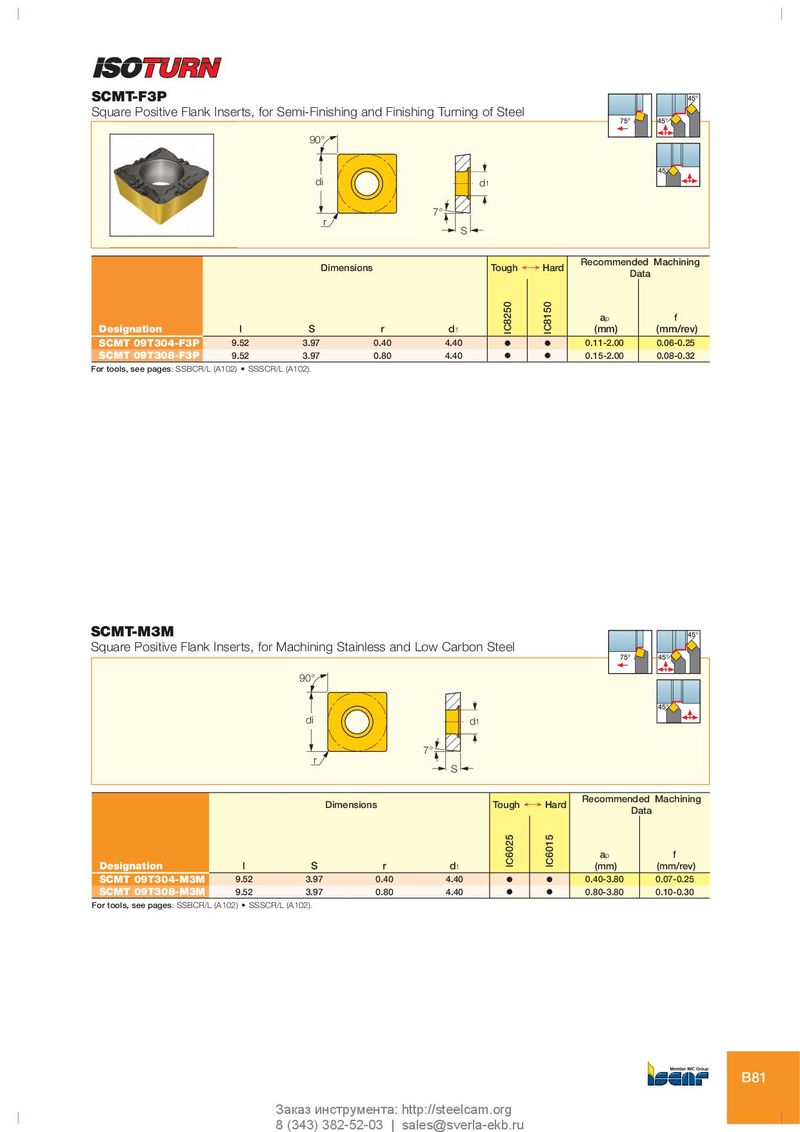

SCMT-F3P 45° Square Positive Flank Inserts, for Semi-Finishing and Finishing Turning of Steel 75° 45° 90° 45° di d 1 7° r S Recommended Machining Dimensions Tough ¥ Hard Data a p f Designation l S r d 1 IC8250 IC8150 (mm) (mm/rev) SCMT 09T304-F3P 9.52 3.97 0.40 4.40 O O 0.11-2.00 0.06-0.25 SCMT 09T308-F3P 9.52 3.97 0.80 4.40 O O 0.15-2.00 0.08-0.32 For tools, see pages: SSBCR/L (A102) • SSSCR/L (A102). SCMT-M3M 45° Square Positive Flank Inserts, for Machining Stainless and Low Carbon Steel 75° 45° 90° 45° di d 1 7° r S Recommended Machining Dimensions Tough ¥ Hard Data a p f Designation l S r d 1 IC6025 IC6015 (mm) (mm/rev) SCMT 09T304-M3M 9.52 3.97 0.40 4.40 O O 0.40-3.80 0.07-0.25 SCMT 09T308-M3M 9.52 3.97 0.80 4.40 O O 0.80-3.80 0.10-0.30 For tools, see pages: SSBCR/L (A102) • SSSCR/L (A102). B81 Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
