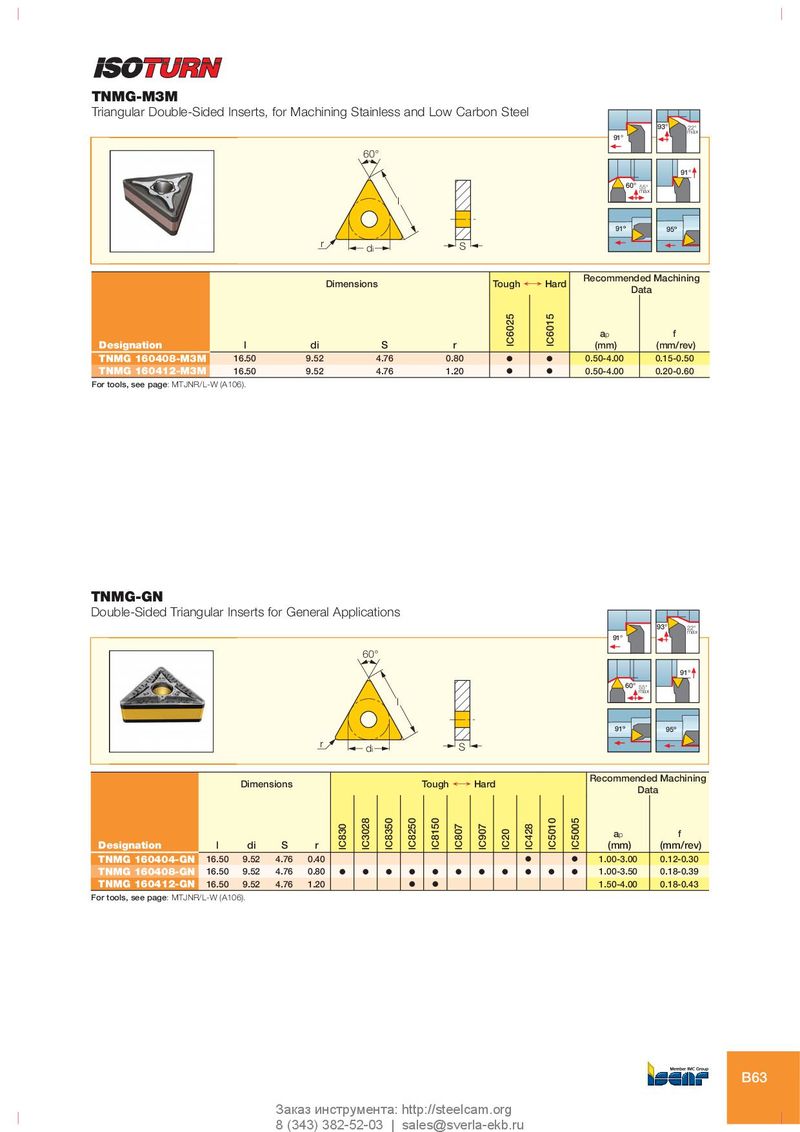

TNMG-M3M Triangular Double-Sided Inserts, for Machining Stainless and Low Carbon Steel 93° 22° max 91° 60° 91° 60° 55° max l 91º 95º r di S Recommended Machining Dimensions Tough ¥ Hard Data a p f Designation l di S r IC6025 IC6015 (mm) (mm/rev) TNMG 160408-M3M 16.50 9.52 4.76 0.80 O O 0.50-4.00 0.15-0.50 TNMG 160412-M3M 16.50 9.52 4.76 1.20 O O 0.50-4.00 0.20-0.60 For tools, see page: MTJNR/L-W (A106). TNMG-GN Double-Sided Triangular Inserts for General Applications 93° 22° max 91° 60° 91° 60° 55° max l 91º 95º r di S Recommended Machining Dimensions Tough ¥ Hard Data a p f Designation l di S r IC830 IC3028 IC8350 IC8250 IC8150 IC807 IC907 IC20 IC428 IC5010 IC5005 (mm) (mm/rev) TNMG 160404-GN 16.50 9.52 4.76 0.40 O O 1.00-3.00 0.12-0.30 TNMG 160408-GN 16.50 9.52 4.76 0.80 O O O O O O O O O O O 1.00-3.50 0.18-0.39 TNMG 160412-GN 16.50 9.52 4.76 1.20 O O 1.50-4.00 0.18-0.43 For tools, see page: MTJNR/L-W (A106). B63 Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
