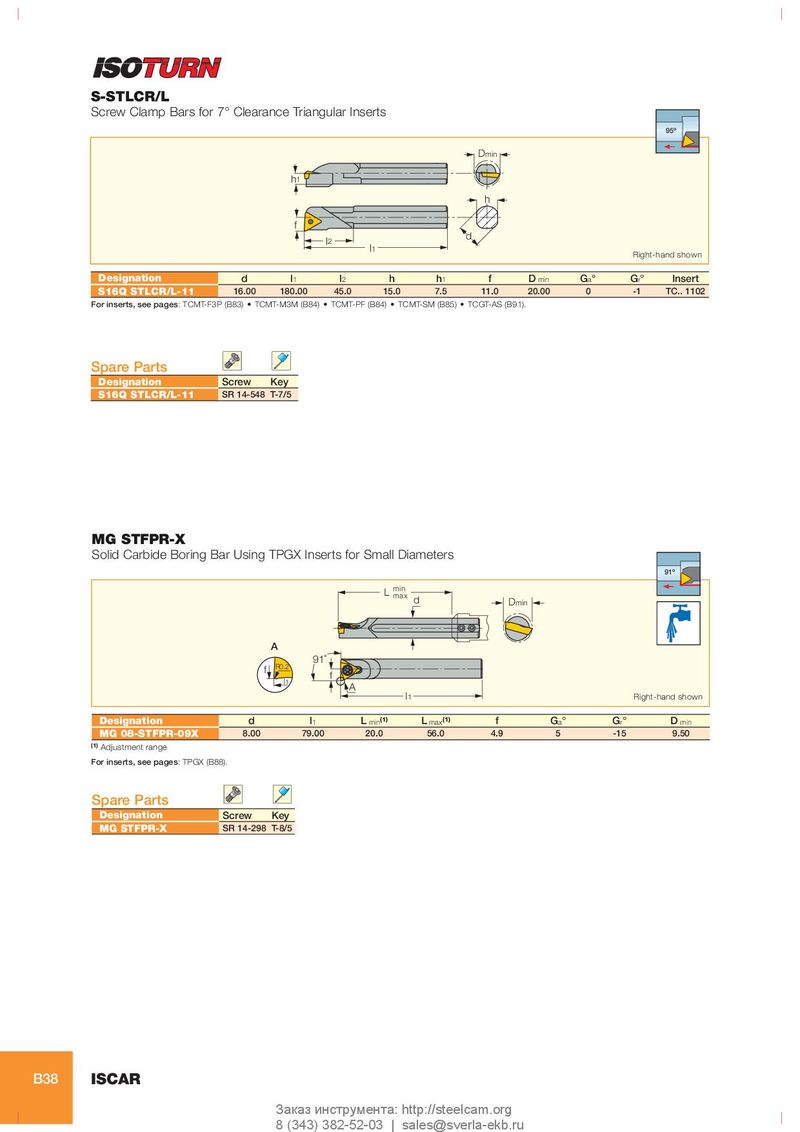

S-STLCR/L Screw Clamp Bars for 7° Clearance Triangular Inserts 95º Dmin h 1 h f d l 2 l 1 Right-hand shown Designation d l 1 l 2 h h 1 f D min G a ° G r ° Insert S16Q STLCR/L-11 16.00 180.00 45.0 15.0 7.5 11.0 20.00 0 -1 TC.. 1102 For inserts, see pages: TCMT-F3P (B83) • TCMT-M3M (B84) • TCMT-PF (B84) • TCMT-SM (B85) • TCGT-AS (B91). Spare Parts Designation Screw Key S16Q STLCR/L-11 SR 14-548 T-7/5 MG STFPR-X Solid Carbide Boring Bar Using TPGX Inserts for Small Diameters 91º L min max d Dmin A 91˚ f R0.2 f I 1 A I 1 Right-hand shown Designation d l 1 L min (1) L max (1) f G a ° G r ° D min MG 08-STFPR-09X 8.00 79.00 20.0 56.0 4.9 5 -15 9.50 (1) Adjustment range For inserts, see pages: TPGX (B88). Spare Parts Designation Screw Key MG STFPR-X SR 14-298 T-8/5 B38 ISCAR Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
