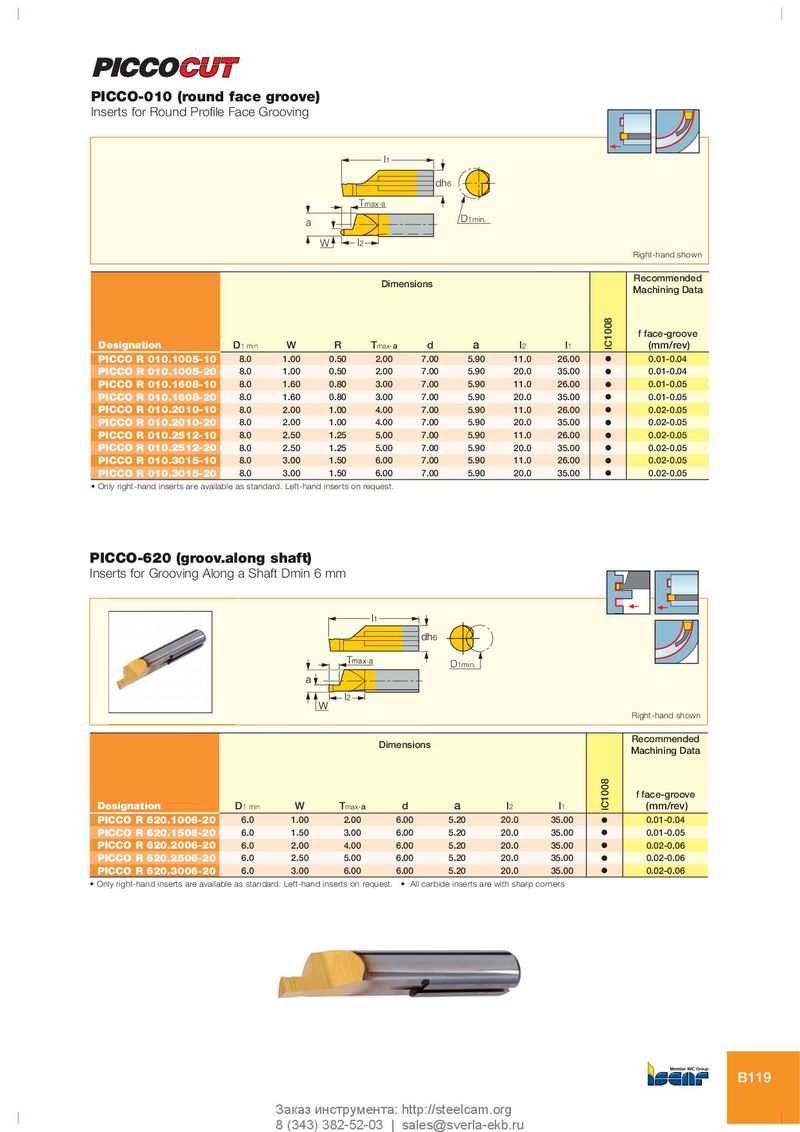

PICCO-010 (round face groove) Inserts for Round Profile Face Grooving l1 d h6 Tmax-a D1min. a W l2 Right-hand shown Recommended Dimensions Machining Data f face-groove Designation D 1 min W R T max- a d a l 2 l 1 IC1008 (mm/rev) PICCO R 010.1005-10 8.0 1.00 0.50 2.00 7.00 5.90 11.0 26.00 O 0.01-0.04 PICCO R 010.1005-20 8.0 1.00 0.50 2.00 7.00 5.90 20.0 35.00 O 0.01-0.04 PICCO R 010.1608-10 8.0 1.60 0.80 3.00 7.00 5.90 11.0 26.00 O 0.01-0.05 PICCO R 010.1608-20 8.0 1.60 0.80 3.00 7.00 5.90 20.0 35.00 O 0.01-0.05 PICCO R 010.2010-10 8.0 2.00 1.00 4.00 7.00 5.90 11.0 26.00 O 0.02-0.05 PICCO R 010.2010-20 8.0 2.00 1.00 4.00 7.00 5.90 20.0 35.00 O 0.02-0.05 PICCO R 010.2512-10 8.0 2.50 1.25 5.00 7.00 5.90 11.0 26.00 O 0.02-0.05 PICCO R 010.2512-20 8.0 2.50 1.25 5.00 7.00 5.90 20.0 35.00 O 0.02-0.05 PICCO R 010.3015-10 8.0 3.00 1.50 6.00 7.00 5.90 11.0 26.00 O 0.02-0.05 PICCO R 010.3015-20 8.0 3.00 1.50 6.00 7.00 5.90 20.0 35.00 O 0.02-0.05 • Only right-hand inserts are available as standard. Left-hand inserts on request. PICCO-620 (groov.along shaft) Inserts for Grooving Along a Shaft Dmin 6 mm l1 dh6 Tmax-a D1min. a l2 W Right-hand shown Recommended Dimensions Machining Data f face-groove Designation D 1 min W T max- a d a l 2 l 1 IC1008 (mm/rev) PICCO R 620.1006-20 6.0 1.00 2.00 6.00 5.20 20.0 35.00 O 0.01-0.04 PICCO R 620.1506-20 6.0 1.50 3.00 6.00 5.20 20.0 35.00 O 0.01-0.05 PICCO R 620.2006-20 6.0 2.00 4.00 6.00 5.20 20.0 35.00 O 0.02-0.06 PICCO R 620.2506-20 6.0 2.50 5.00 6.00 5.20 20.0 35.00 O 0.02-0.06 PICCO R 620.3006-20 6.0 3.00 6.00 6.00 5.20 20.0 35.00 O 0.02-0.06 • Only right-hand inserts are available as standard. Left-hand inserts on request. • All carbide inserts are with sharp corners B119 Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
