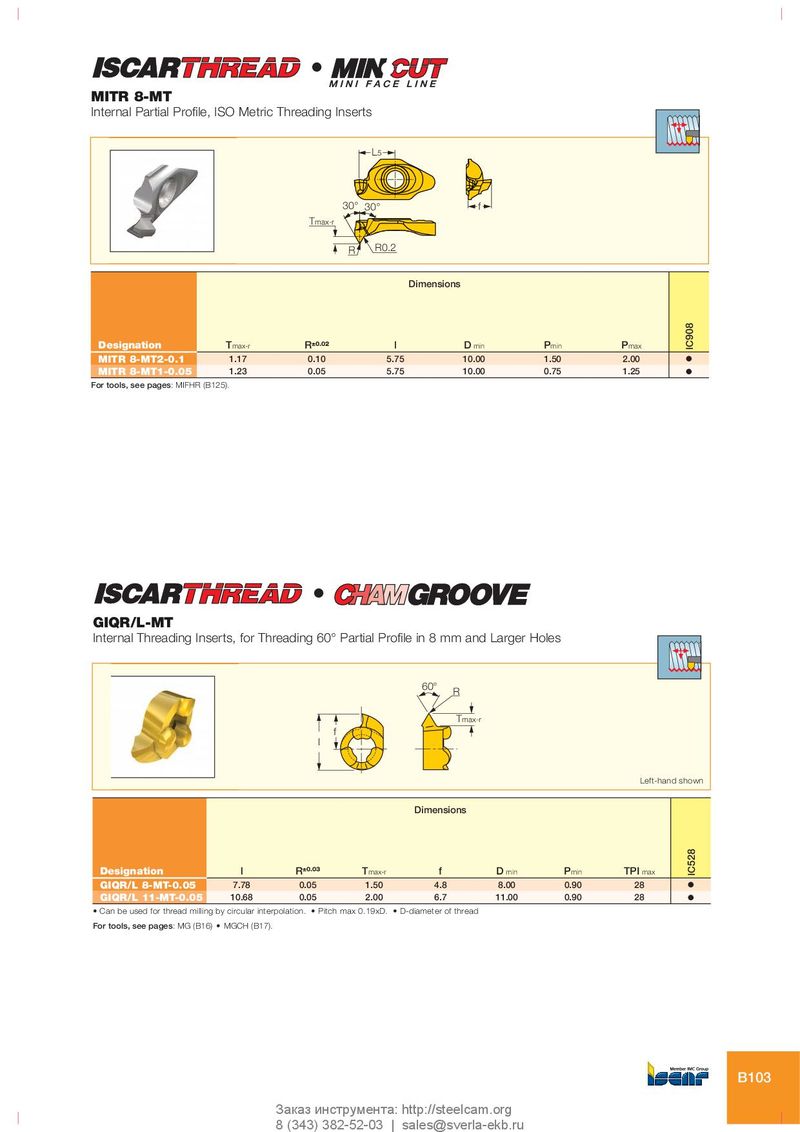

 O  MITR 8-MT Internal Partial Profile, ISO Metric Threading Inserts L5 30° 30° f Tmax-r R R0.2 Dimensions Designation T max-r R ±0.02 l D min P min P max IC908 MITR 8-MT2-0.1 1.17 0.10 5.75 10.00 1.50 2.00 O MITR 8-MT1-0.05 1.23 0.05 5.75 10.00 0.75 1.25 O For tools, see pages: MIFHR (B125).  O  GIQR/L-MT Internal Threading Inserts, for Threading 60° Partial Profile in 8 mm and Larger Holes 60° R Tmax-r f l Left-hand shown Dimensions Designation l R ±0.03 T max-r f D min P min TPI max IC528 GIQR/L 8-MT-0.05 7.78 0.05 1.50 4.8 8.00 0.90 28 O GIQR/L 11-MT-0.05 10.68 0.05 2.00 6.7 11.00 0.90 28 O • Can be used for thread milling by circular interpolation. • Pitch max 0.19xD. • D-diameter of thread For tools, see pages: MG (B16) • MGCH (B17). B103 Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
