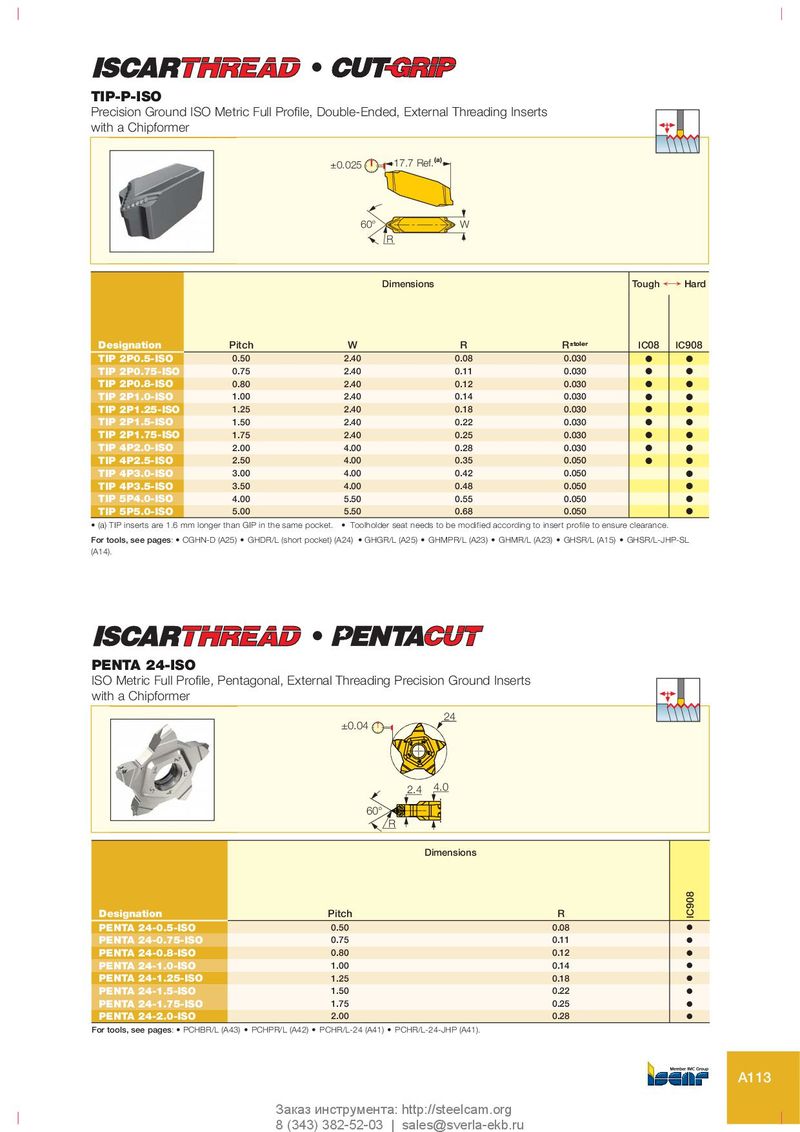

 O  TIP-P-ISO Precision Ground ISO Metric Full Profile, Double-Ended, External Threading Inserts with a Chipformer (a) ±0.025 17.7 Ref. 60° W R Dimensions Tough ¥ Hard Designation Pitch W R R ±toler IC08 IC908 TIP 2P0.5-ISO 0.50 2.40 0.08 0.030 O O TIP 2P0.75-ISO 0.75 2.40 0.11 0.030 O O TIP 2P0.8-ISO 0.80 2.40 0.12 0.030 O O TIP 2P1.0-ISO 1.00 2.40 0.14 0.030 O O TIP 2P1.25-ISO 1.25 2.40 0.18 0.030 O O TIP 2P1.5-ISO 1.50 2.40 0.22 0.030 O O TIP 2P1.75-ISO 1.75 2.40 0.25 0.030 O O TIP 4P2.0-ISO 2.00 4.00 0.28 0.030 O O TIP 4P2.5-ISO 2.50 4.00 0.35 0.050 O O TIP 4P3.0-ISO 3.00 4.00 0.42 0.050 O TIP 4P3.5-ISO 3.50 4.00 0.48 0.050 O TIP 5P4.0-ISO 4.00 5.50 0.55 0.050 O TIP 5P5.0-ISO 5.00 5.50 0.68 0.050 O • (a) TIP inserts are 1.6 mm longer than GIP in the same pocket. • Toolholder seat needs to be modified according to insert profile to ensure clearance. For tools, see pages: • CGHN-D (A25) • GHDR/L (short pocket) (A24) • GHGR/L (A25) • GHMPR/L (A23) • GHMR/L (A23) • GHSR/L (A15) • GHSR/L-JHP-SL (A14).  O  PENTA 24-ISO ISO Metric Full Profile, Pentagonal, External Threading Precision Ground Inserts with a Chipformer 24 ±0.04 2.4 4.0 60° R Dimensions Designation Pitch R IC908 PENTA 24-0.5-ISO 0.50 0.08 O PENTA 24-0.75-ISO 0.75 0.11 O PENTA 24-0.8-ISO 0.80 0.12 O PENTA 24-1.0-ISO 1.00 0.14 O PENTA 24-1.25-ISO 1.25 0.18 O PENTA 24-1.5-ISO 1.50 0.22 O PENTA 24-1.75-ISO 1.75 0.25 O PENTA 24-2.0-ISO 2.00 0.28 O For tools, see pages: • PCHBR/L (A43) • PCHPR/L (A42) • PCHR/L-24 (A41) • PCHR/L-24-JHP (A41). A113 Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
