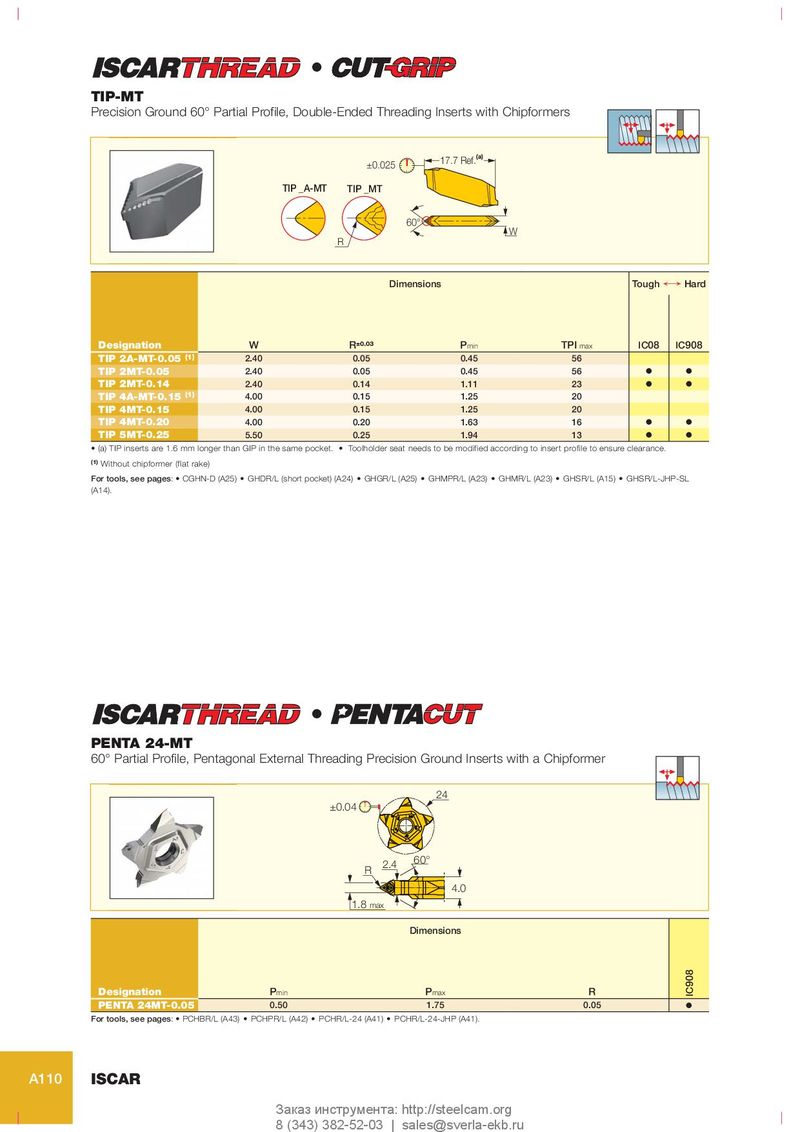

 O  TIP-MT Precision Ground 60° Partial Profile, Double-Ended Threading Inserts with Chipformers (a) 17.7 Ref. ±0.025 TIP _A-MT TIP _MT 60° W R Dimensions Tough ¥ Hard Designation W R ±0.03 P min TPI max IC08 IC908 TIP 2A-MT-0.05 (1) 2.40 0.05 0.45 56 TIP 2MT-0.05 2.40 0.05 0.45 56 O O TIP 2MT-0.14 2.40 0.14 1.11 23 O O TIP 4A-MT-0.15 (1) 4.00 0.15 1.25 20 TIP 4MT-0.15 4.00 0.15 1.25 20 TIP 4MT-0.20 4.00 0.20 1.63 16 O O TIP 5MT-0.25 5.50 0.25 1.94 13 O O • (a) TIP inserts are 1.6 mm longer than GIP in the same pocket. • Toolholder seat needs to be modified according to insert profile to ensure clearance. (1) Without chipformer (flat rake) For tools, see pages: • CGHN-D (A25) • GHDR/L (short pocket) (A24) • GHGR/L (A25) • GHMPR/L (A23) • GHMR/L (A23) • GHSR/L (A15) • GHSR/L-JHP-SL (A14).  O  PENTA 24-MT 60° Partial Profile, Pentagonal External Threading Precision Ground Inserts with a Chipformer 24 ±0.04 60° 2.4 R 4.0 1.8 max Dimensions Designation P min P max R IC908 PENTA 24MT-0.05 0.50 1.75 0.05 O For tools, see pages: • PCHBR/L (A43) • PCHPR/L (A42) • PCHR/L-24 (A41) • PCHR/L-24-JHP (A41). A110 ISCAR Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
